Post your setup!!!

Awesome setup @Ash . I am so jealous. Plz excuse my mess but it's been awhile since i've tidyed up my desk area:



I think it's about time i made a trip to the bottle depot.

Last edited:

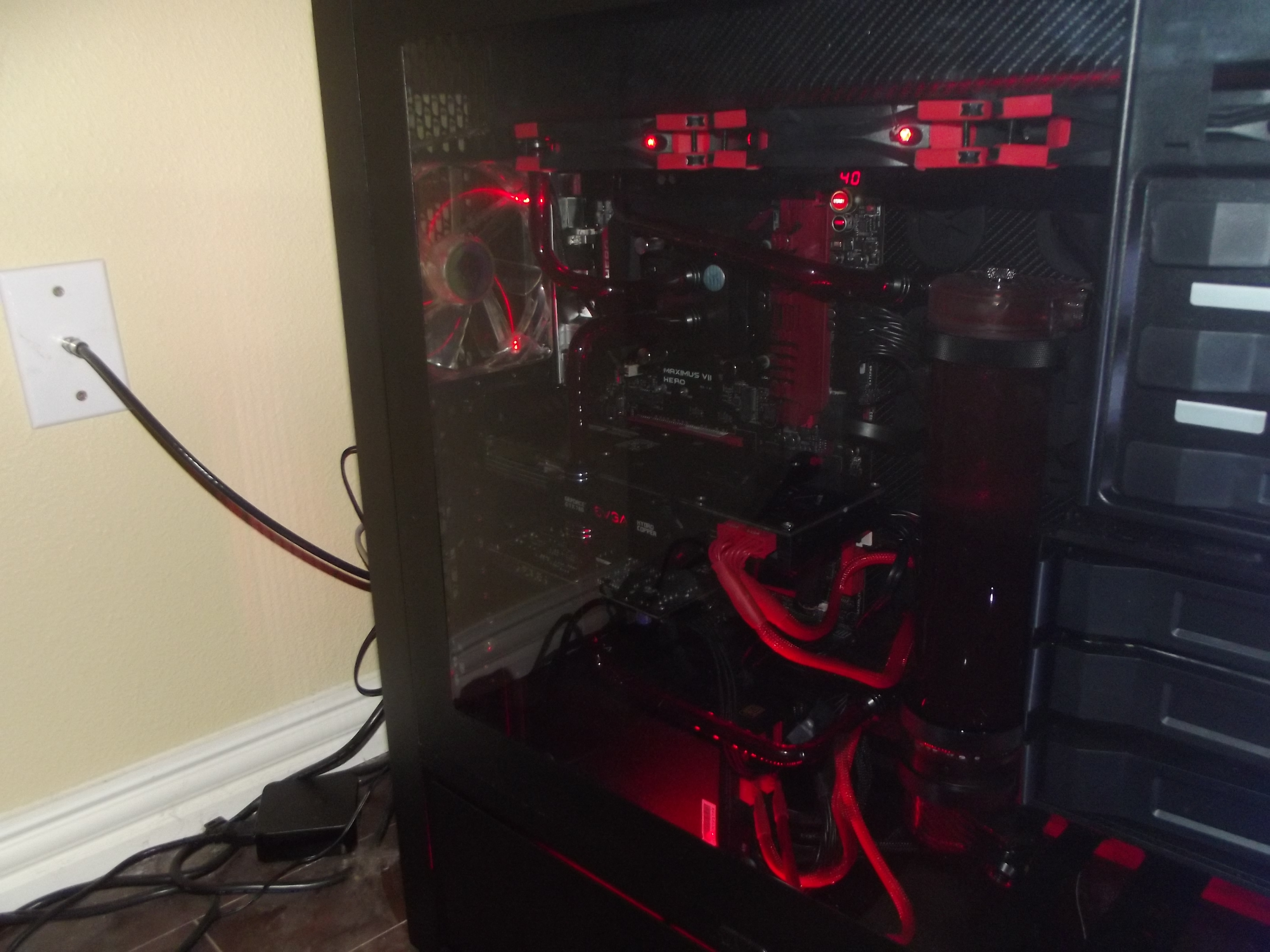

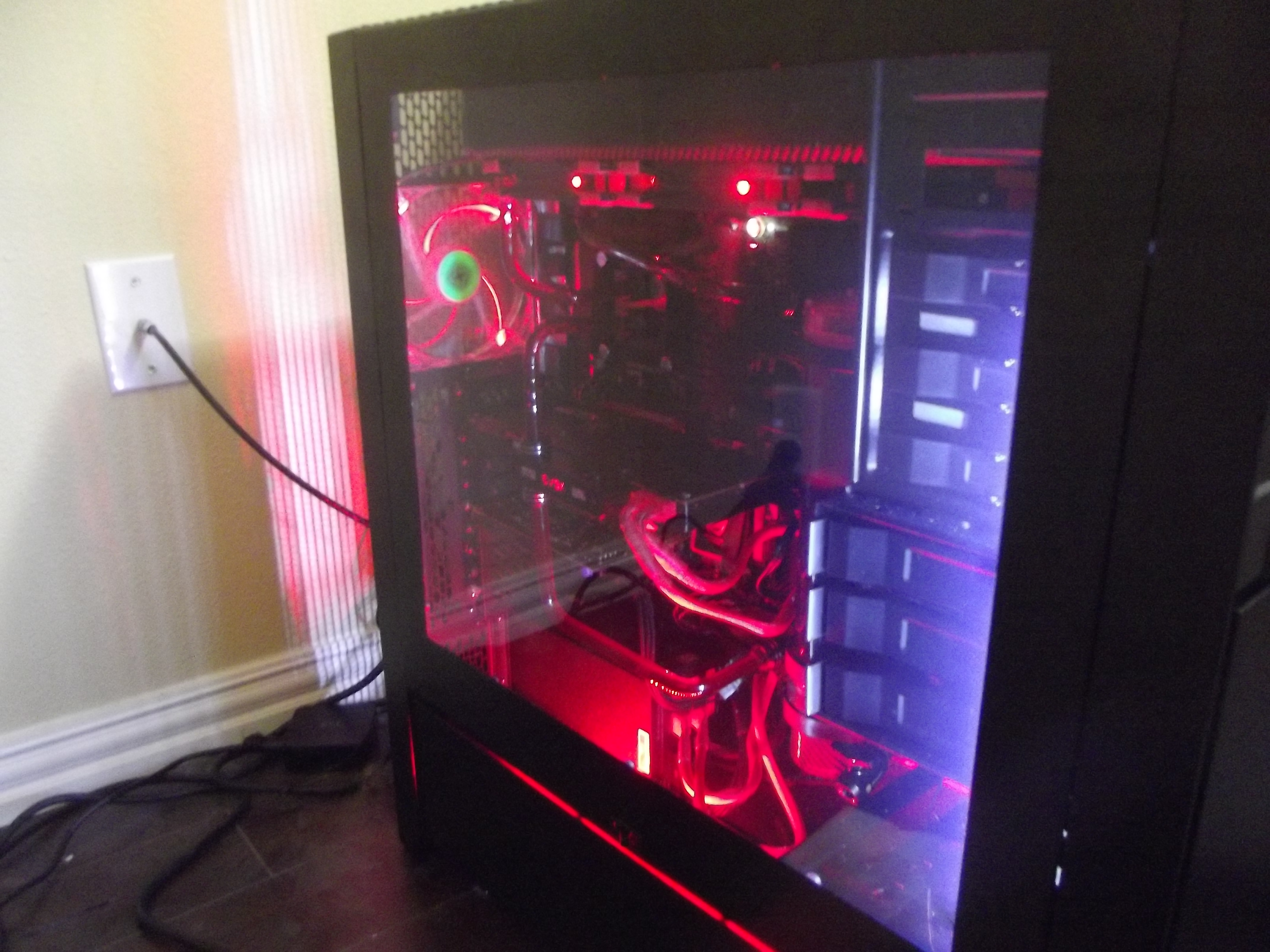

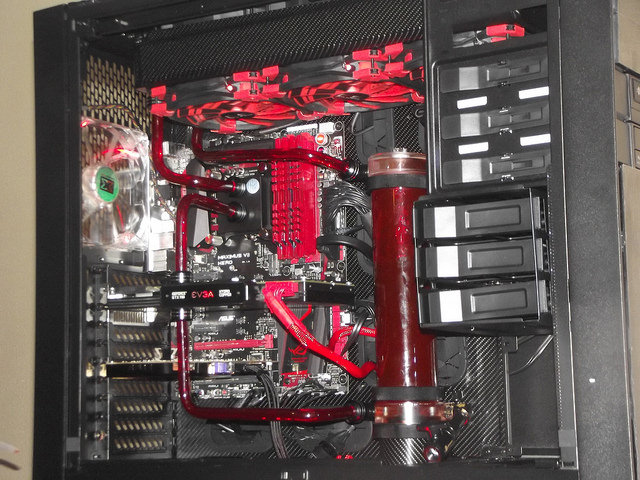

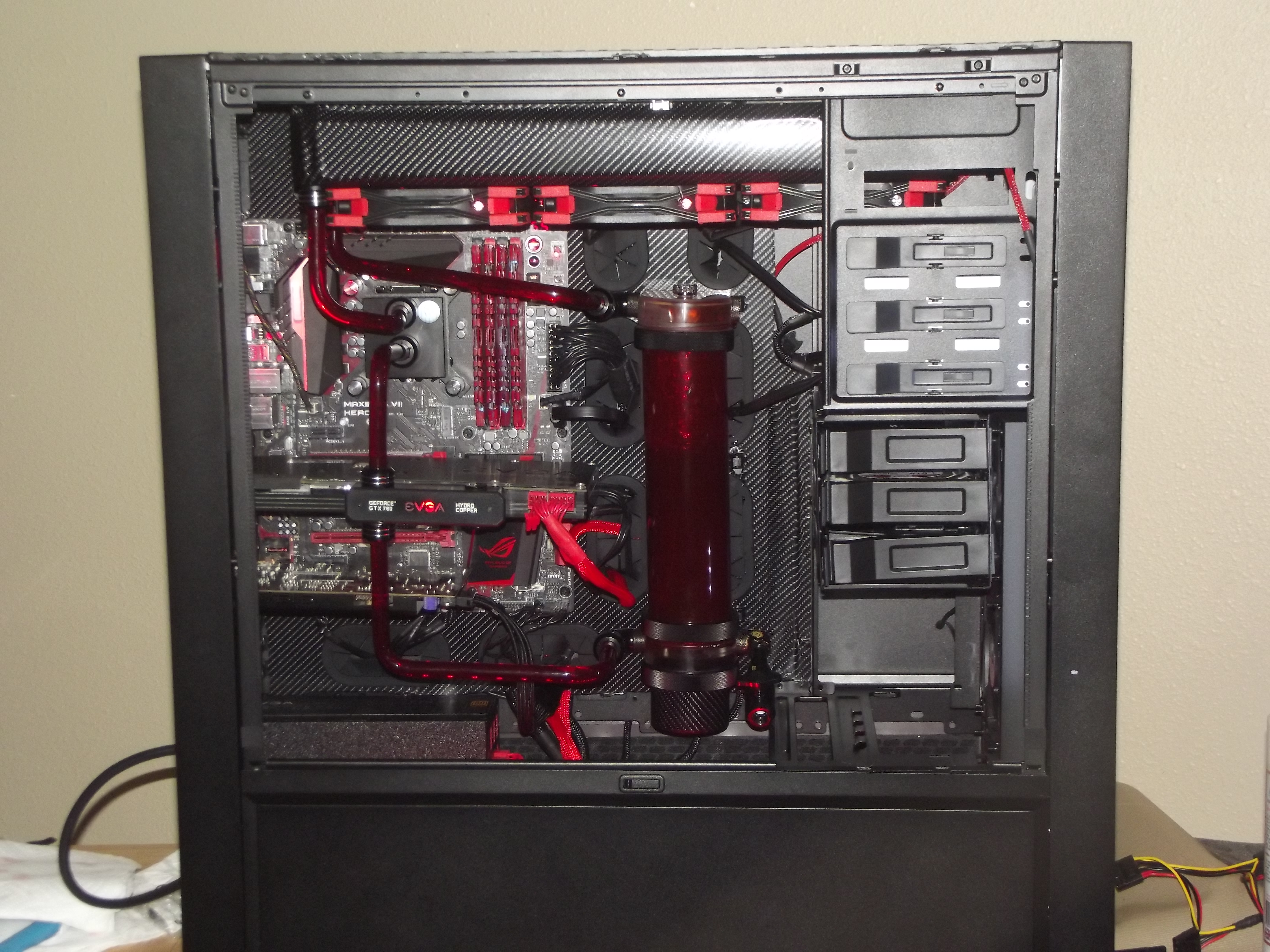

Now that I've got mine built :)
4790K CPU
Asus Maximus Hero VII Z97
16GB G. Skill Ripjawz 2400mhz
EVGA GTX 780 Hydro Copper
Asus Xonar Essence STX sound card
Samsung 840 Pro SSD 256GB
WD 1TB Blue HDD

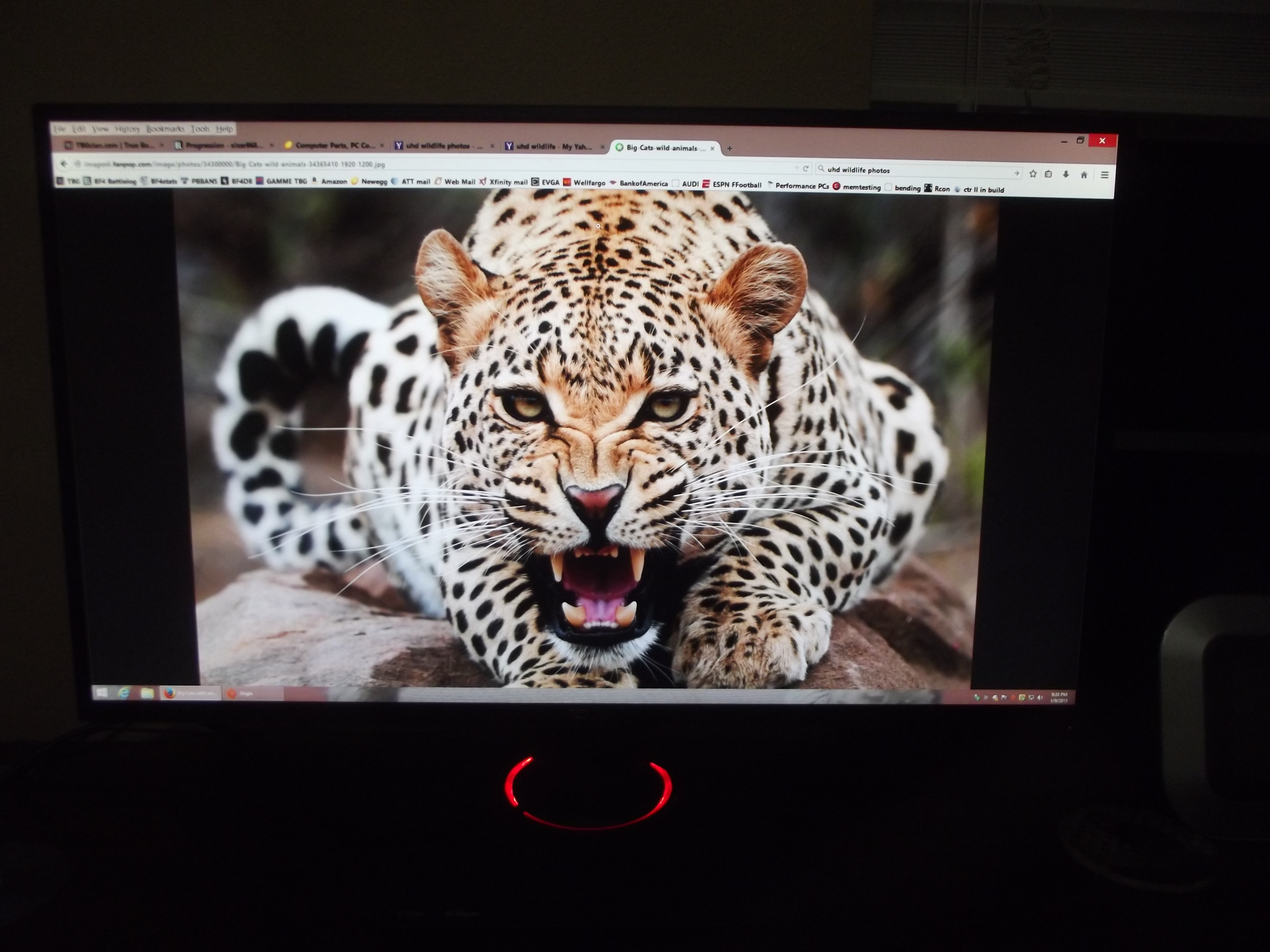

Asus Rog PG278Q monitor
EVGA 1000G2 PSU
EK Supremacy Evo CPU water block
HW Black Ice SR-1 420 radiator
Primochill CRT II 240ml reservoir
Primochill PETG rigid tubing
Primochill Revolver rigid compression fittings
Bitspower drain valve
Swiftech D5 MCP-655B pump
LG WH16NS40 16x Internal Super Multi Blue Blu-ray Disc Rewriter









@Snakebabies

Yep Alphacool XT60 480 & XT45 360 using two because i got the cpu clocked at 5ghz and the fans are running really slow so system is pretty much silent.

Full list:

3770K @ 5ghz
Asus Sabertooth Z77
8Gb Samsung Green overclocked to 2133Mhz
Samsung Evo 840 250GB
Crucial M4 64GB
WD 1TB Black
2x WD 3TB Red
WD 2TB Green
LG BD-RW
Phanteks Enthoo Primo
Corsair AX850
Evga 680 2GB
Evga 680 backplate
1x Akasa Vegas LED strips
2x Lampton FC5 V2 fan controllers.
Dell U2711 2560x1440
Asus 24" 1080
Color Munki color calibrator
Bose Companion 3


Watercooling:

Alphacool UT60 480mm radiator
Alphacool XT45 360mm radiator
XSPC Raystorm cpu block
EK-FC680 GTX Block
150ml Bitspower reservoir
Bitspower shiny silver compression fittings 7/16 5/8
Mix of Bitspower and XSPC rotary fittings

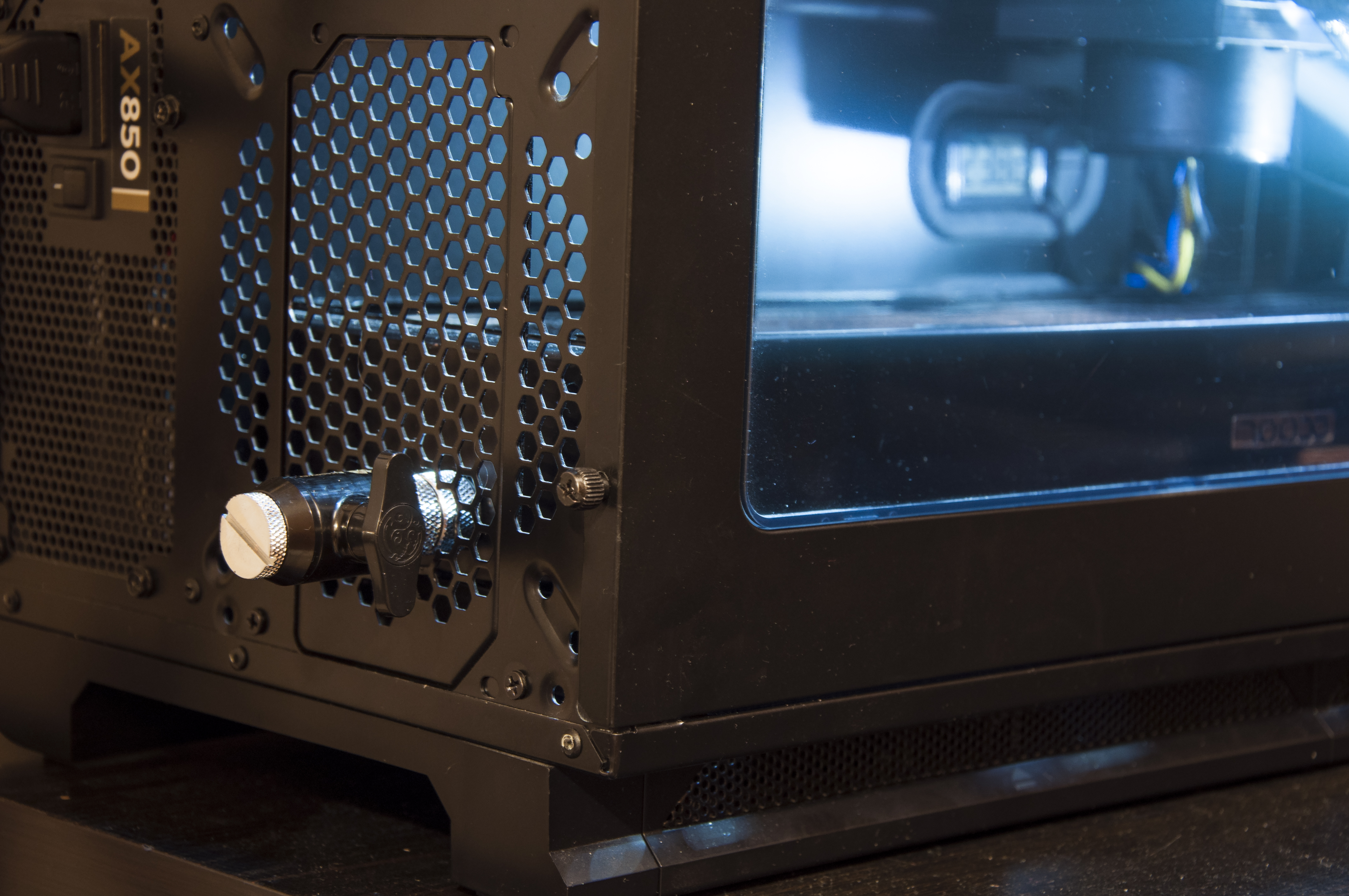

Bitspower tap
XSPC D5 pump
EK CSQ pump top
Primochill Advanced clear tubing 7/16 - 5/8
Mayhems UV Blood Red
4x Synthe Gentle Typhoon 1850 fans
3x Corsair SP-120 quite fans

Last edited:

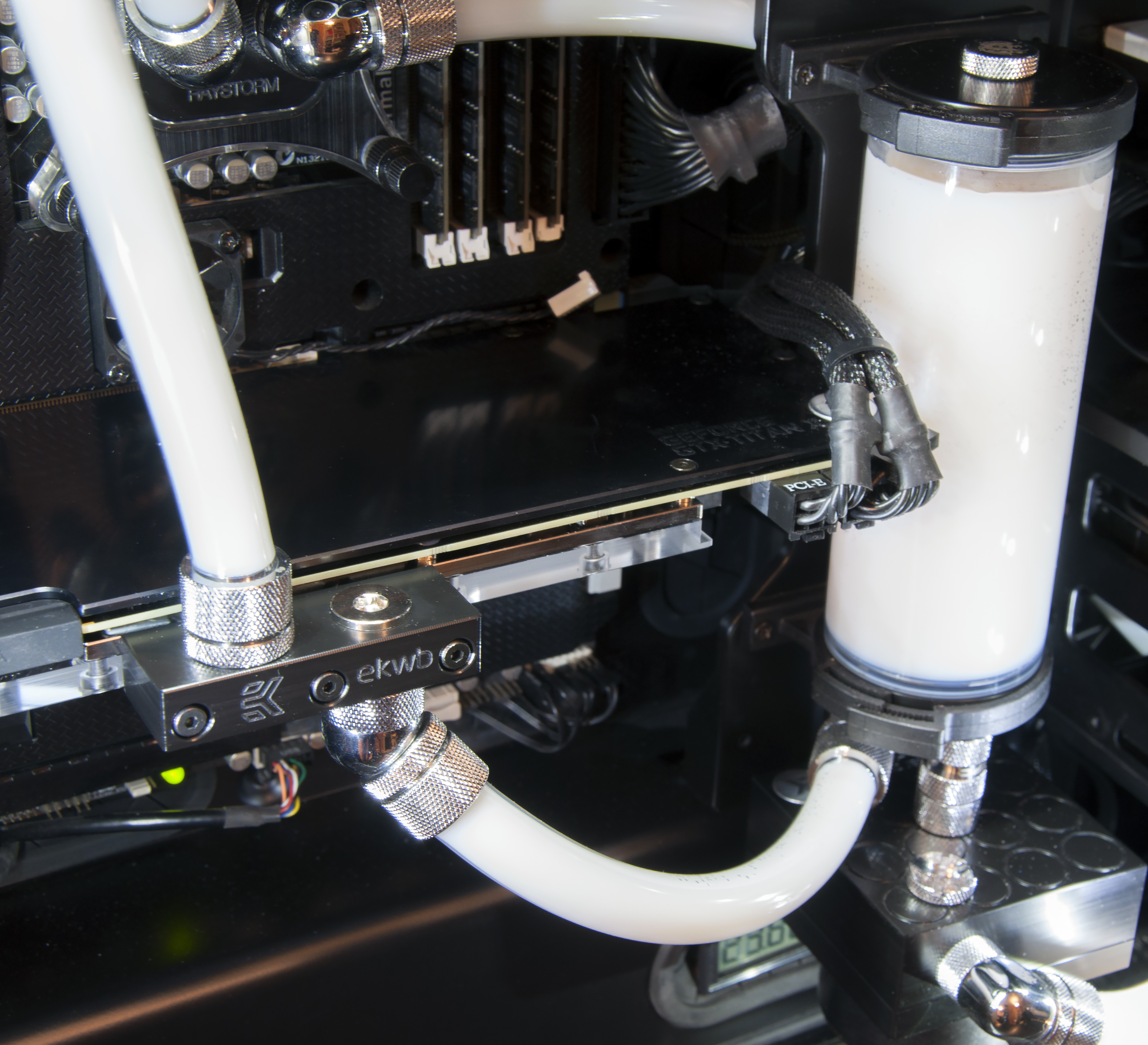

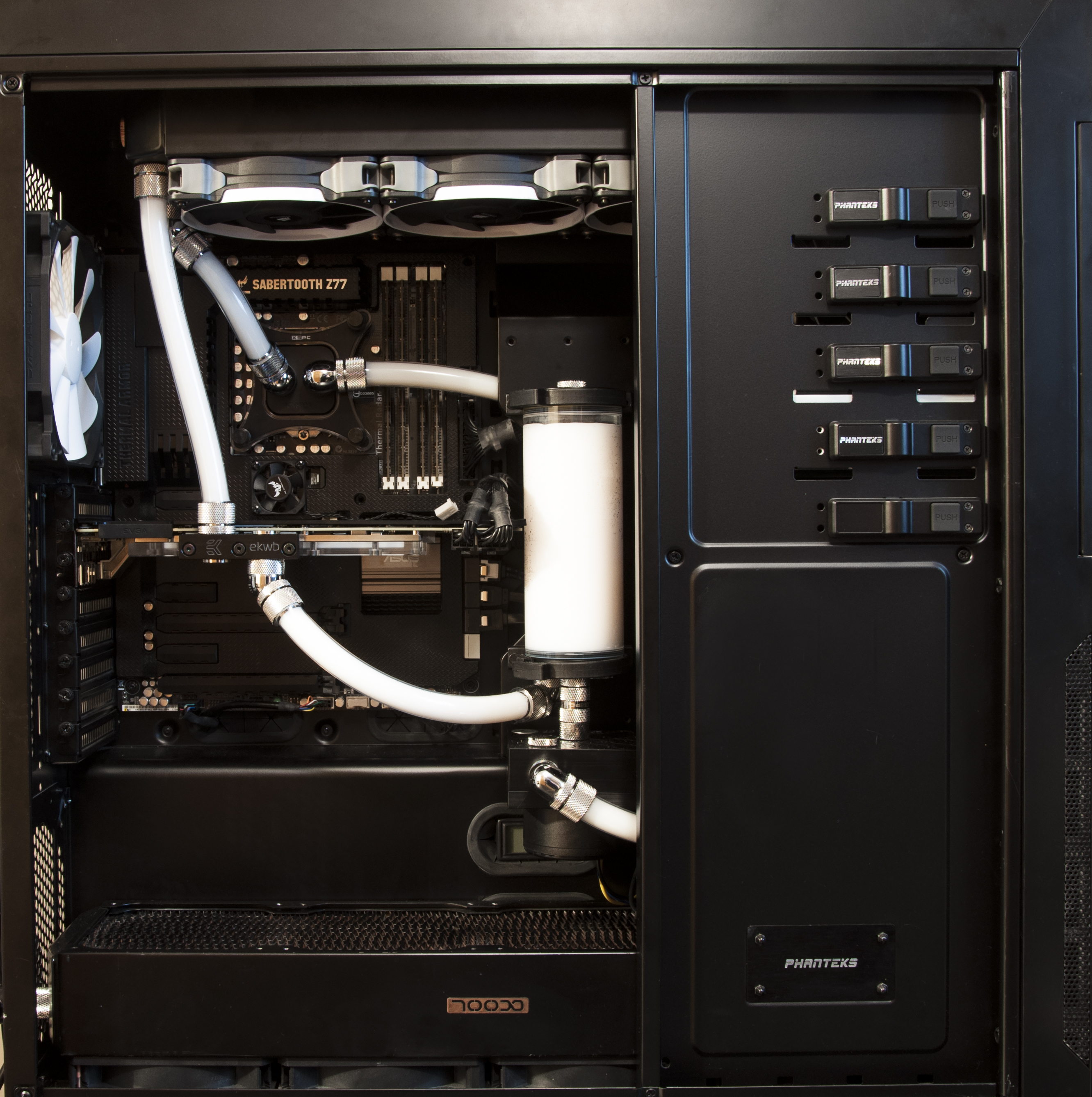

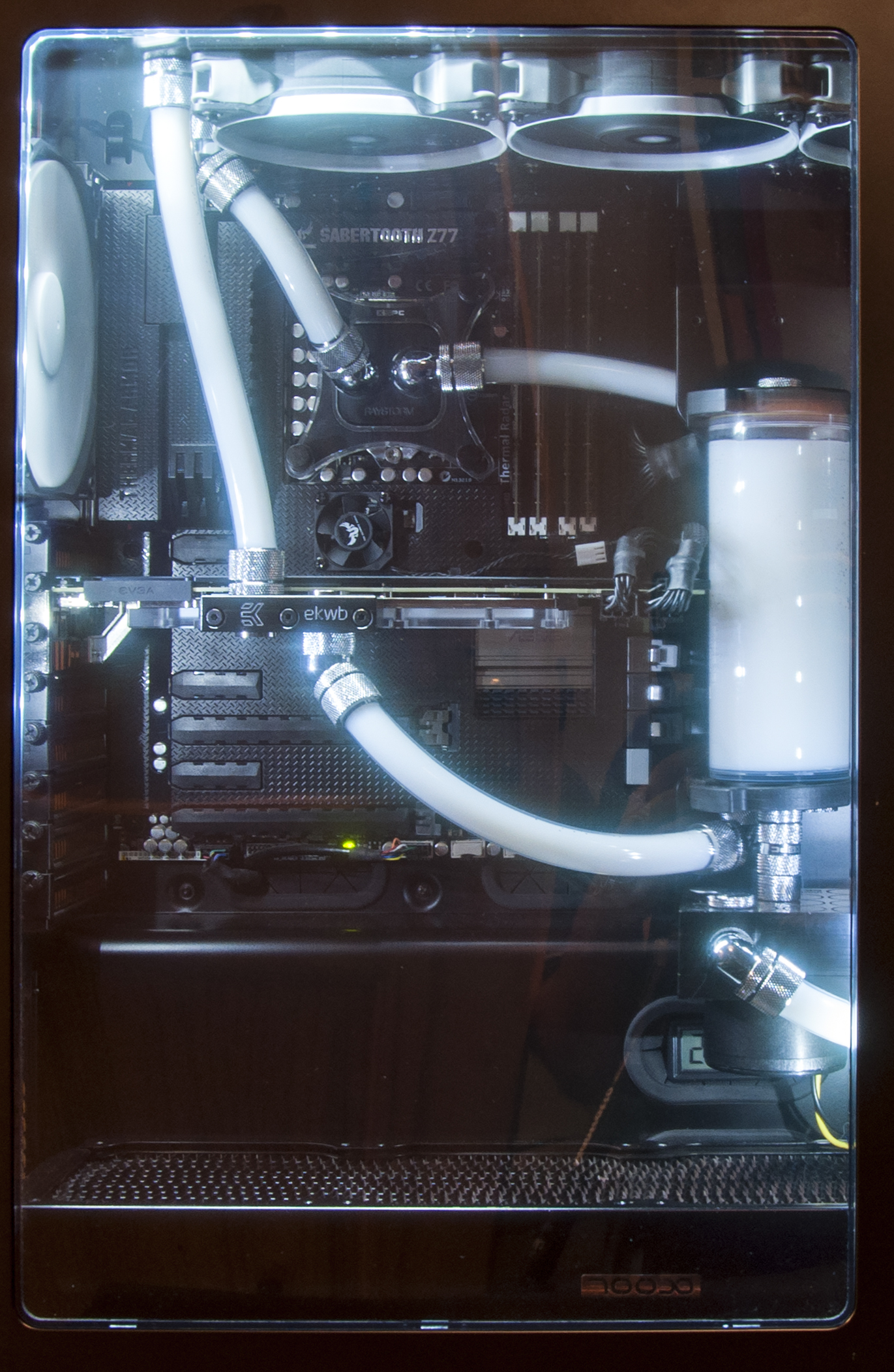

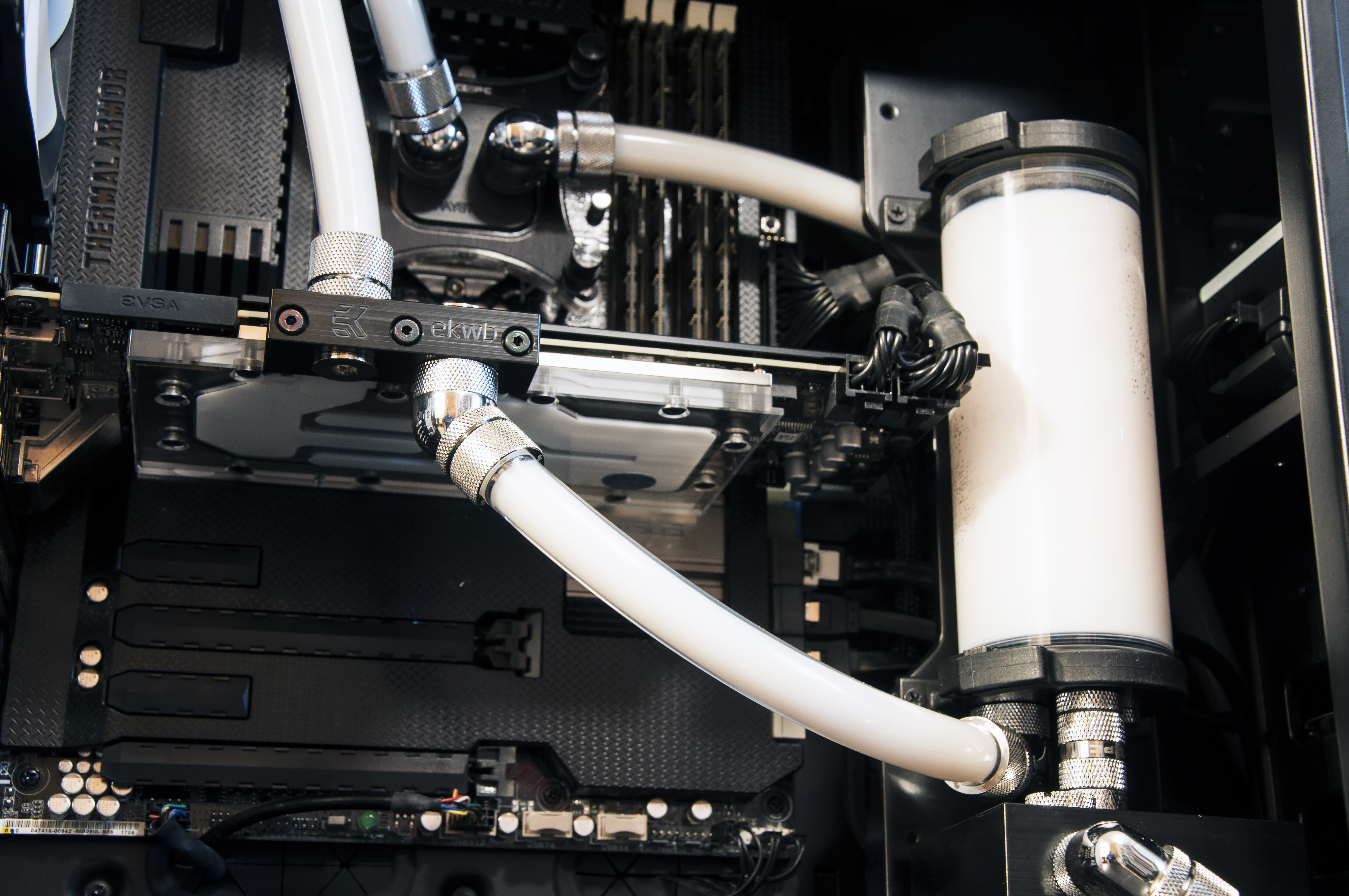

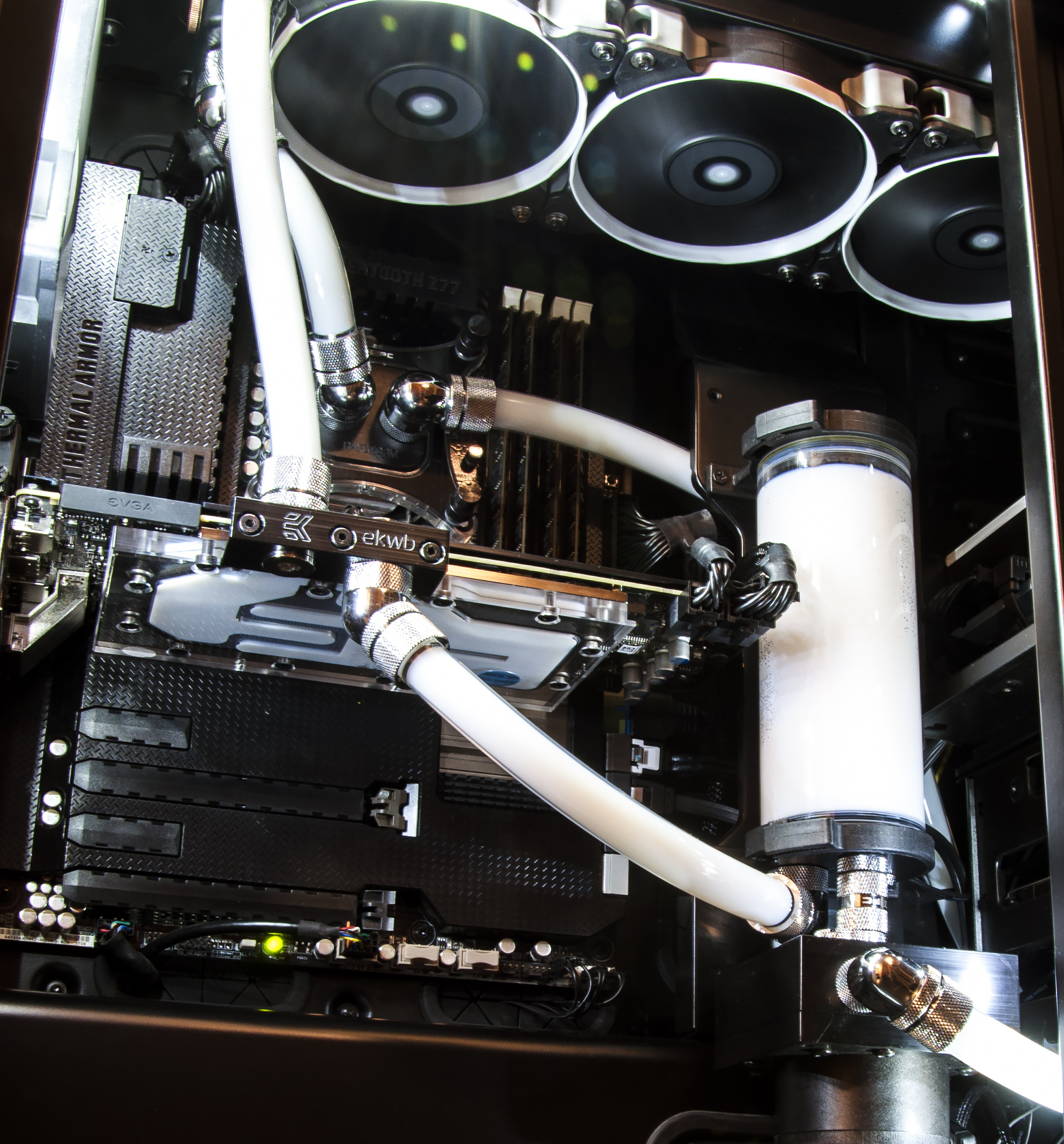

Made a few changes including an EVGA 980Ti Superclock+ which I just got round to watercooling. Also added more memory and
changed loop order, pump, radiator, fans, tubing and fluid.












Last edited:
The 150 res looks great in there, I can't imagine trying to stuff a 350 in that case without making modifications. Nice job indeed!

sixer9682 said:
The 150 res looks great in there, I can't imagine trying to stuff a 350 in that case without making modifications. Nice job indeed!
Click to expand...

Thanks the case has holes for 150 or 250 brackets, as much as I like the 350 reservoirs I don't think it would look right. Plus so far I have 1.6 litres in there, I don't think I could move the thing if I added any more weight.

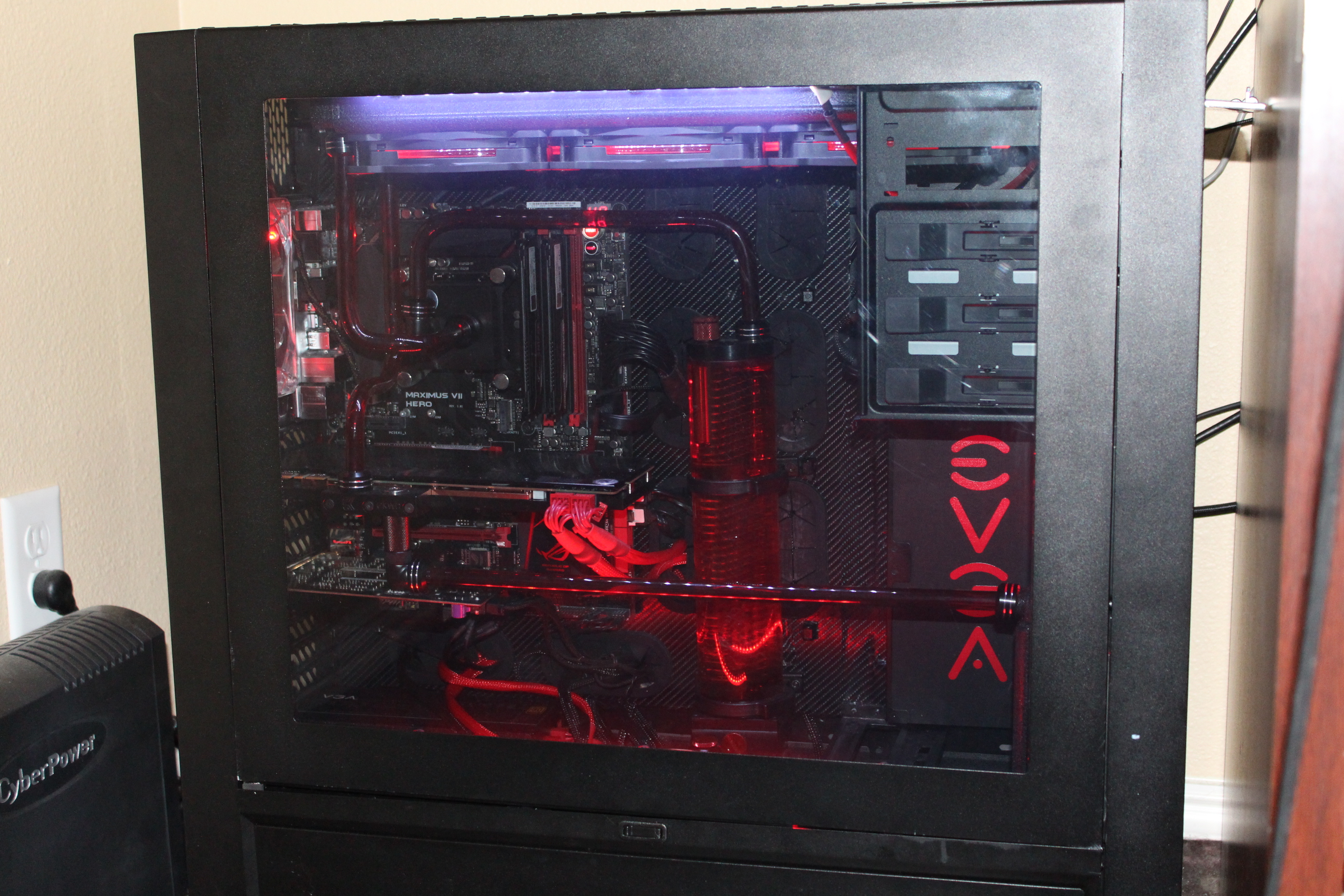

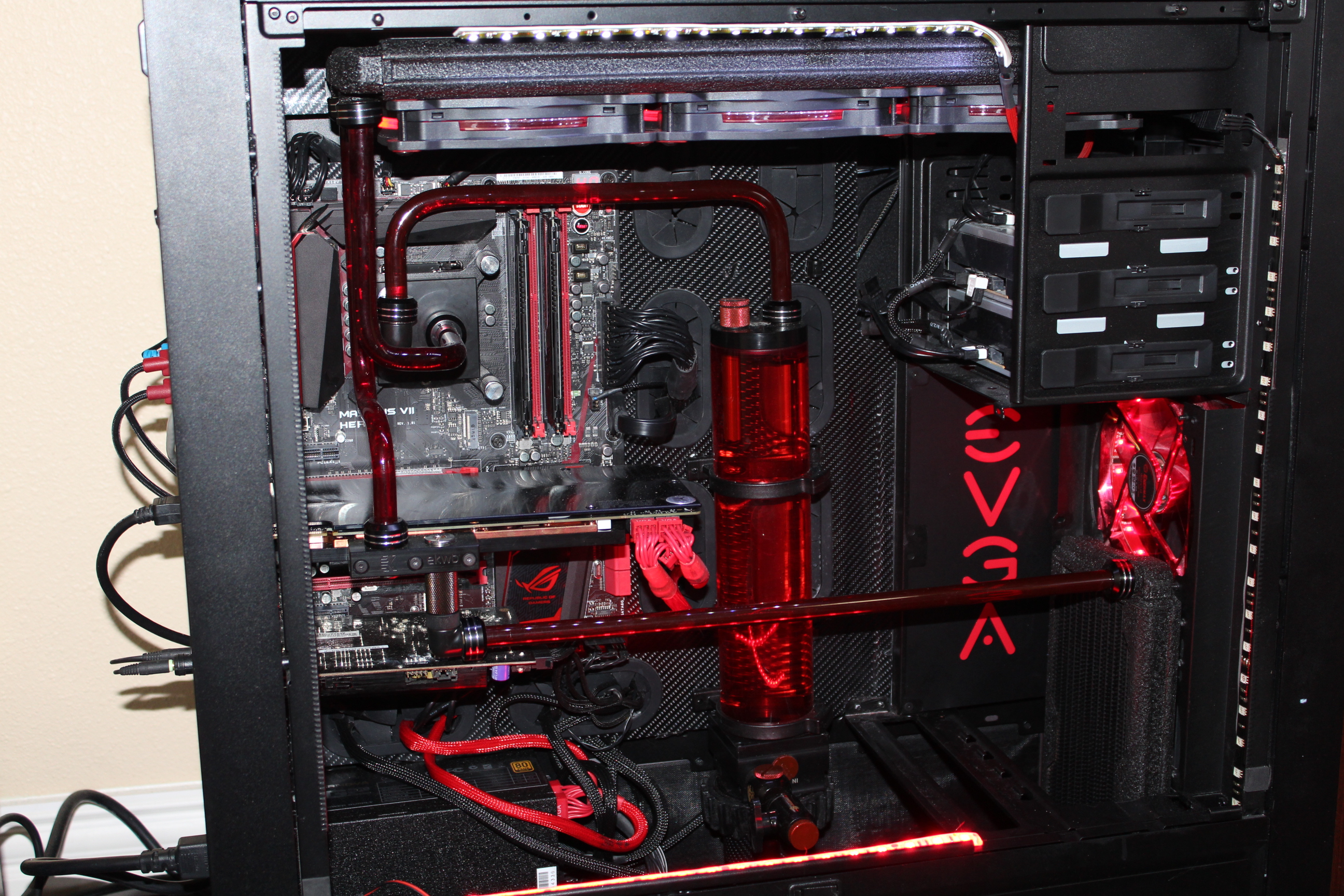

Move or not it just looks right with the 150 there; I think anyway. You made me want to put an updated pic of my rig here : )

I noticed after I took these pics that I'd forgotten to tuck the bottom cables away after making some adjustments to a few small things in the case so it actually looks neater than this now but this was the last update I did on mine.
