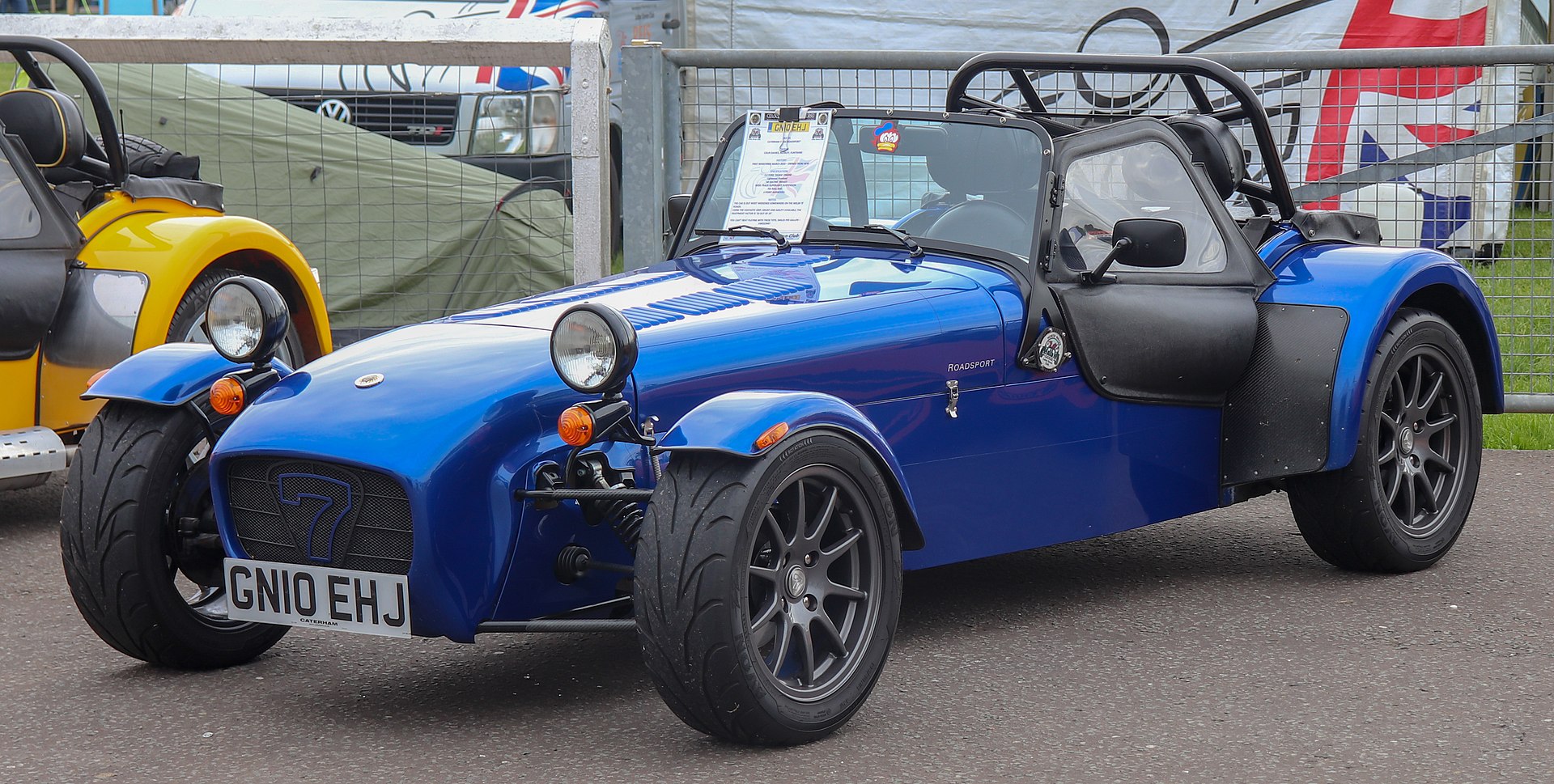

So at the tail end of my covid quarantine I was cycling through ideas. Building a Lotus 7 replica is something I land on at times. So for excersize I drew a book chassis. But now its time to draw my own chassis. But first some measurements.

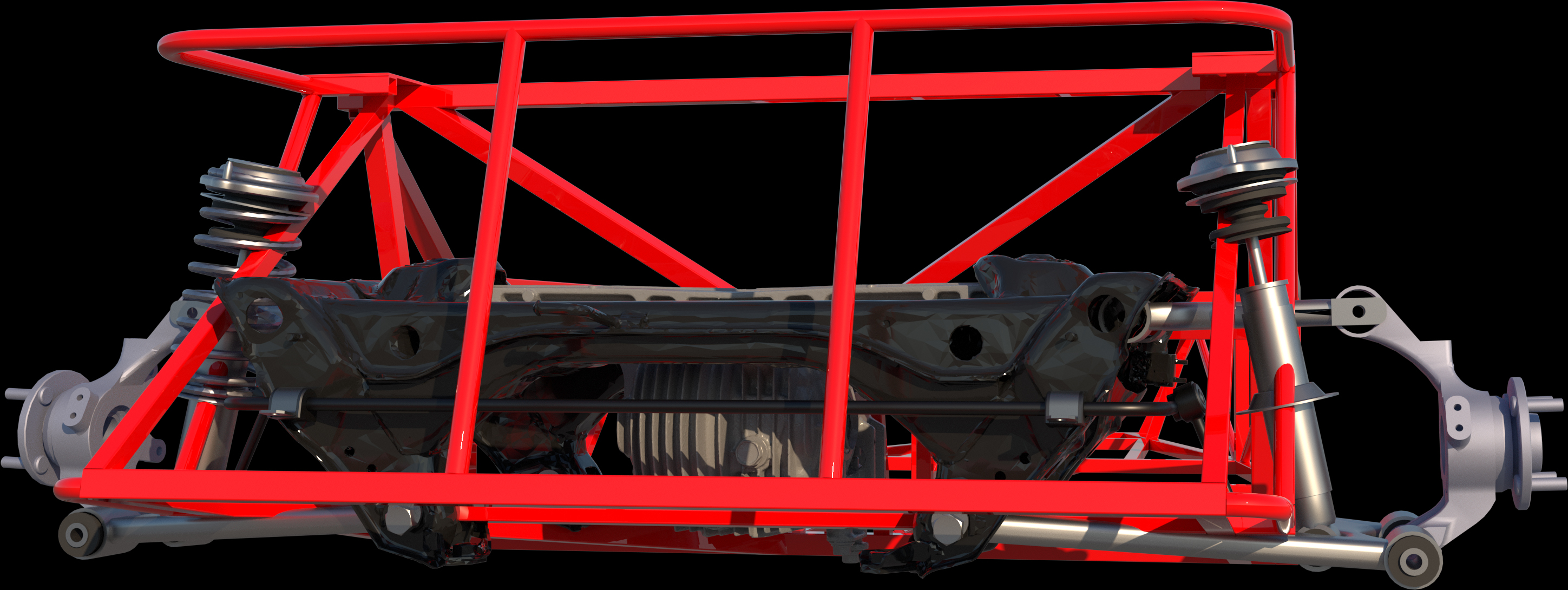

3D scan of an NA Miata rear subframe, differential along with a passable drawing of the rear suspension. Plus the unwilling Haynes Book chassis that will need a total redesign for measurements:


This is going to be awhile. But I always make sure I have 0 time for gaming lol

Last edited:

RainMotorsports

Leadership
Leadership
Joined
Mar 6, 2011
Messages
8,556
Likes
2,065

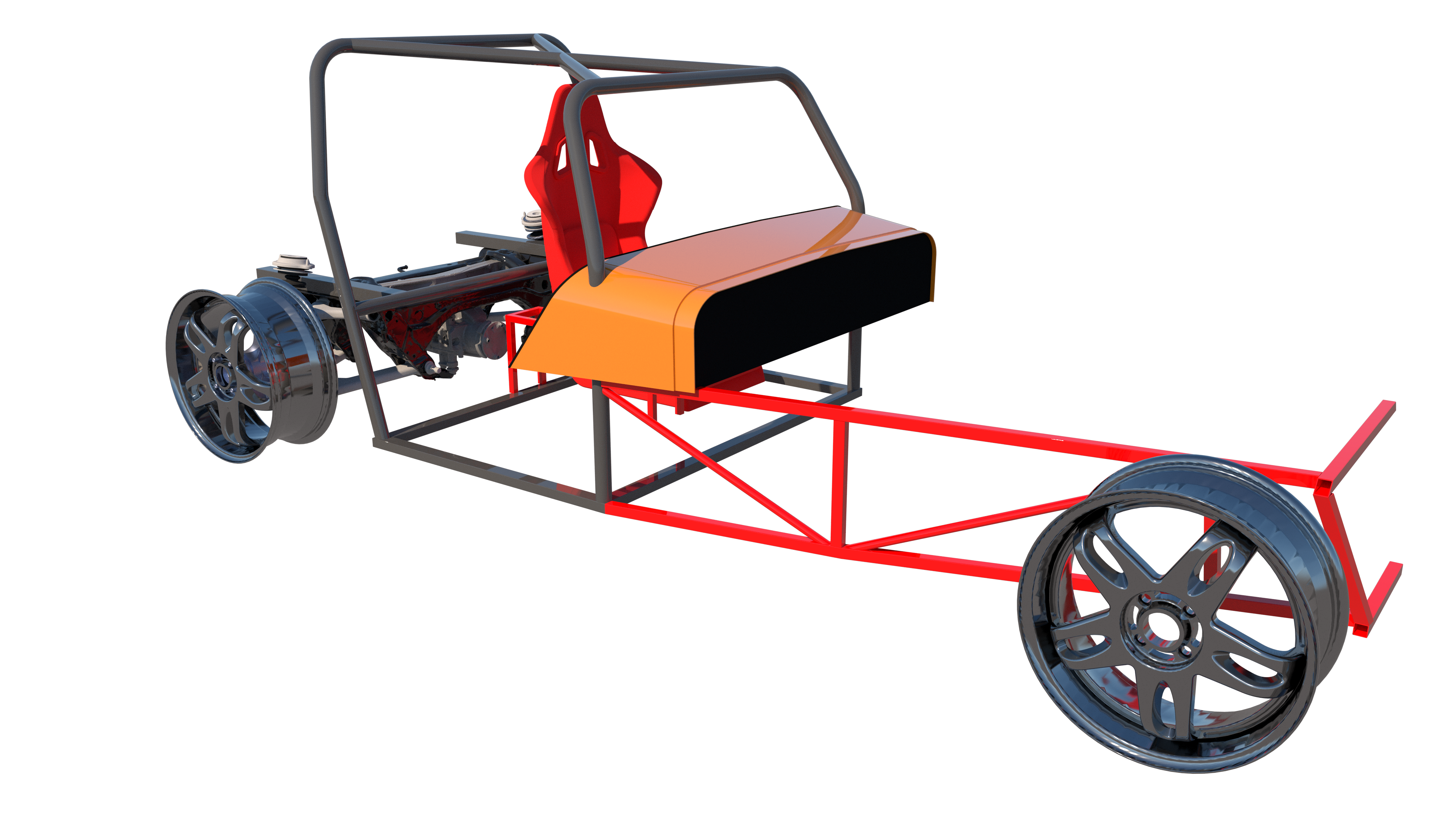

So after spending 24 hours in 3 days of drawing and redrawing the start of the cage I have gotten absolutely no where. But I finally got those sections drawn correctly and can proceed. So I decided to take a snapshot of the work.
12-28 Miata.png

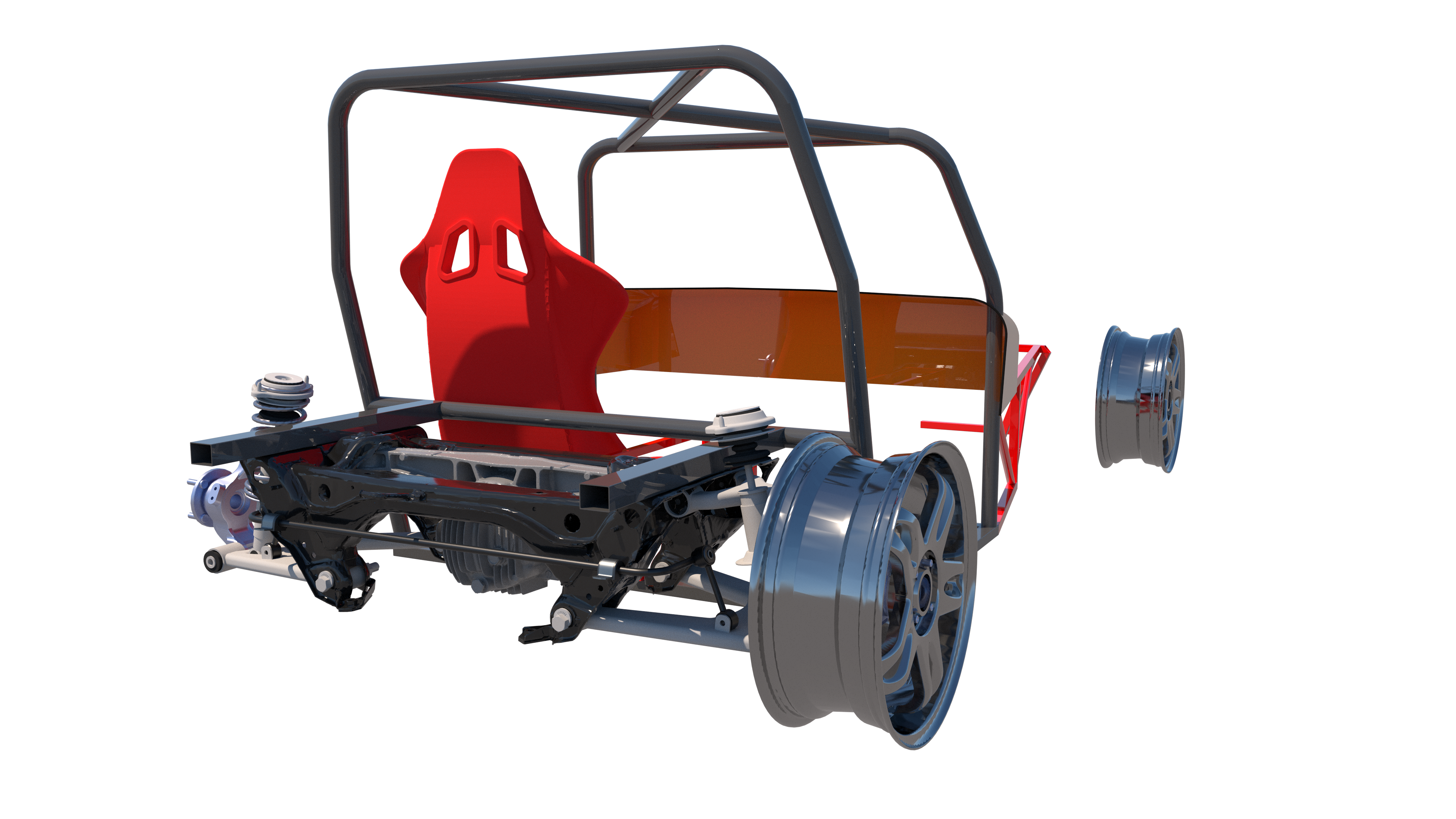

The braces for the back of the cage will come down and meet the subframe mount as a matter of structure for both. Not sure yet if I am going near straight or maybe cross it up. Have to worry about things like the fuel cell when I start getting fancy.
12-28 Miata2.png
