Putting a gaming laptop into a picture frame. (Assembled & Running)

Discussion in 'Tech Talk' started by RainMotorsports, Oct 9, 2017.

  1. RainMotorsports

    RainMotorsports Active Member Head Admin

    Age:
    32
    8,169
    1,802
    Mar 6, 2011
    Male
    In The Machine
    United States United States

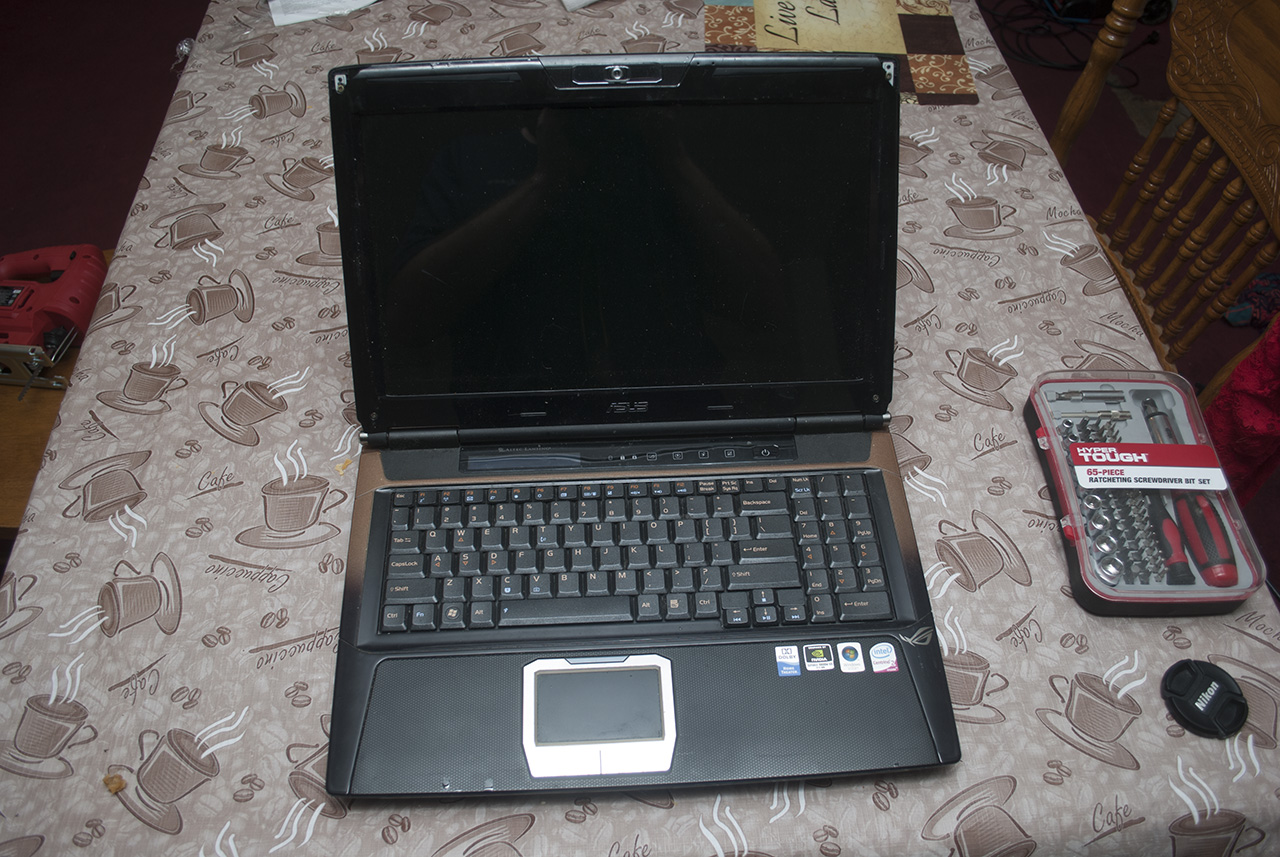

    So I can't force myself to throw away my old gaming laptop. I mean it still works. So why not an emulator box with wireless controllers and hang it on the wall?

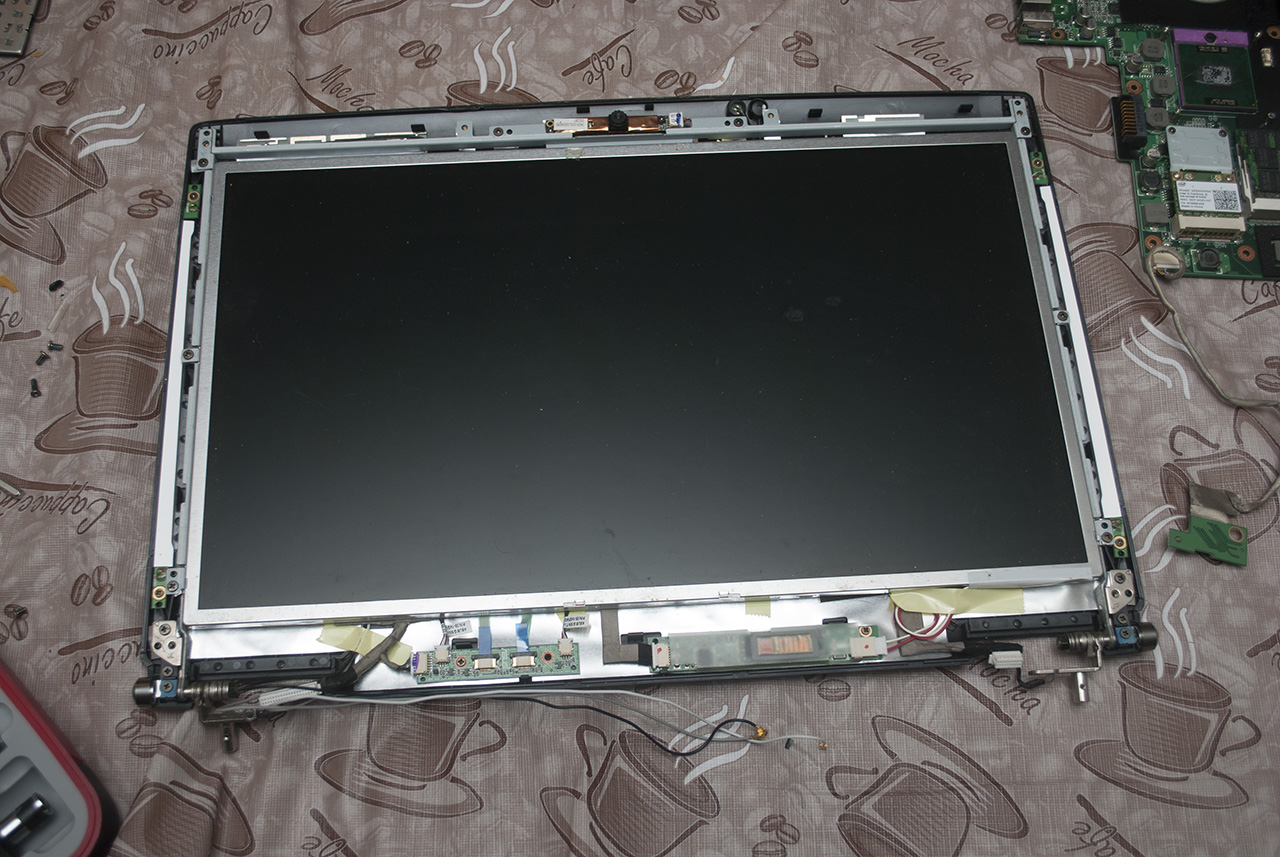

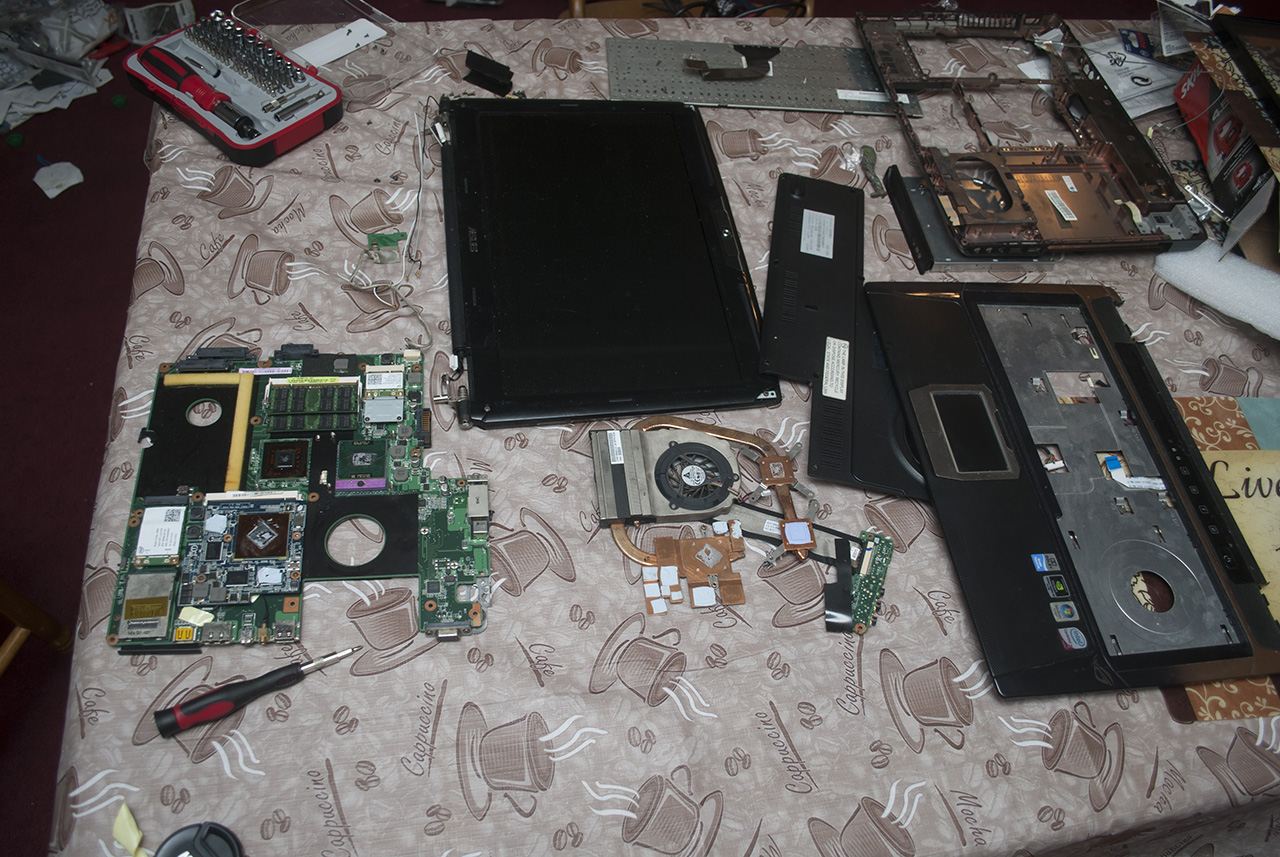

    Step 1 Pillage:

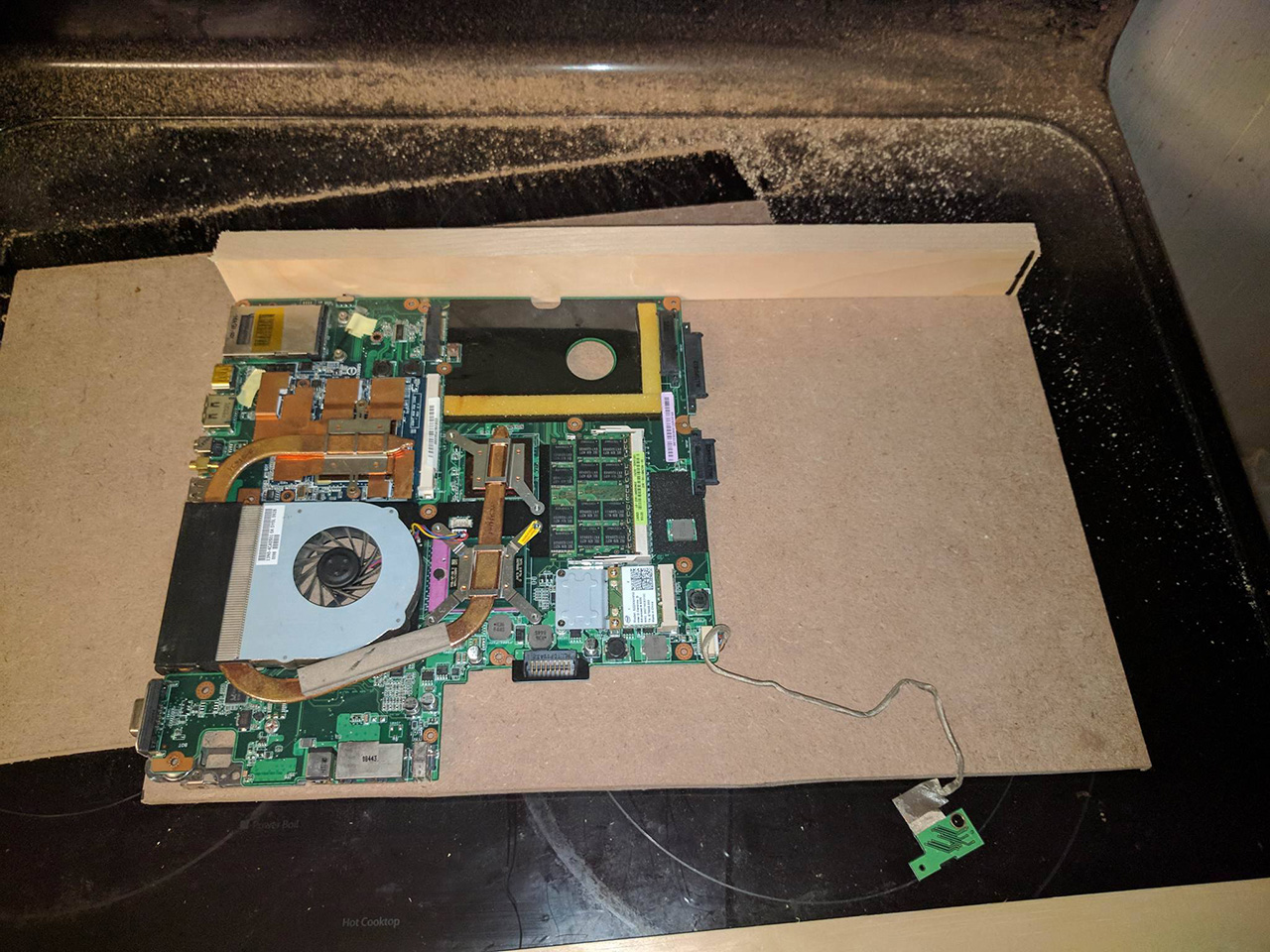

    Cut a 2x2 sheet of MDF down to fit an 11x17 walmart frame and mock up:

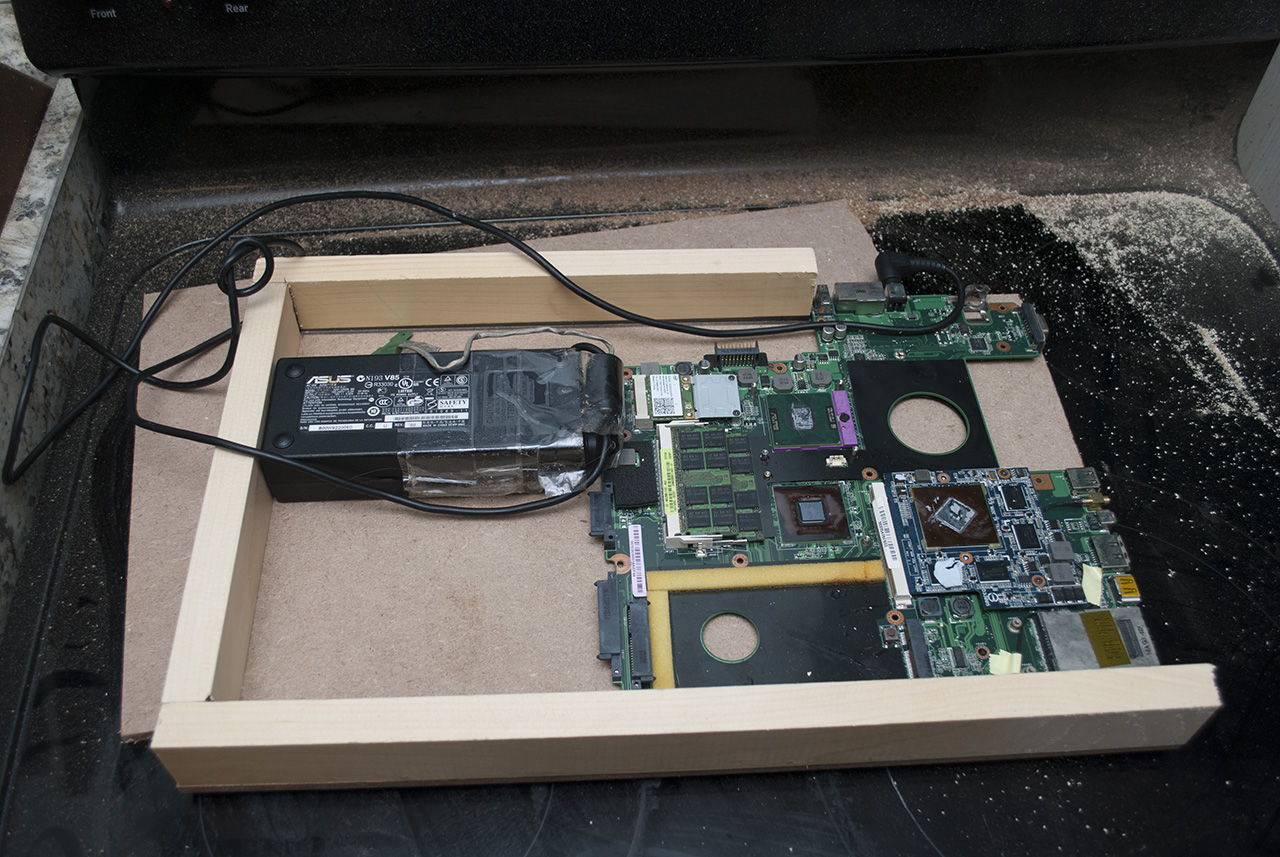

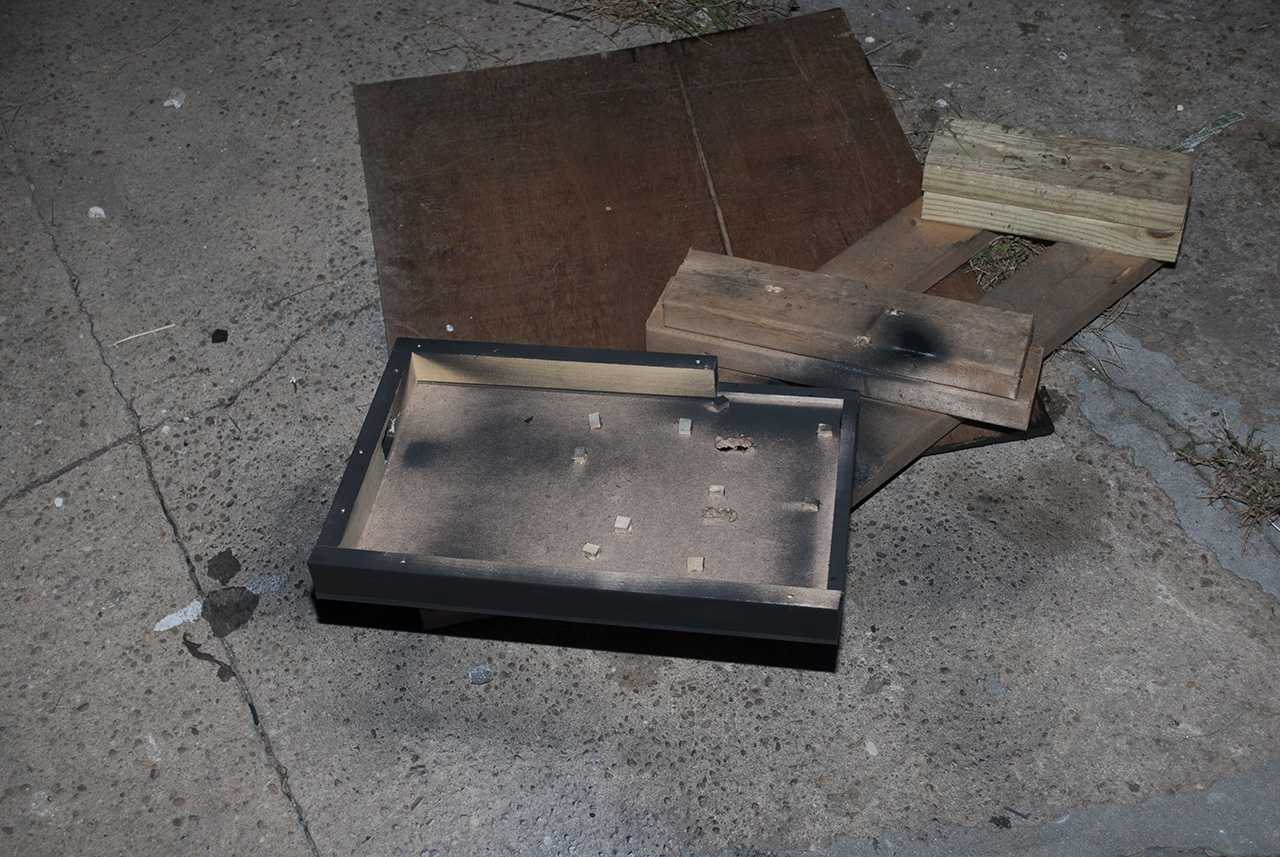

    Rough cut an enclosure and mockup parts:

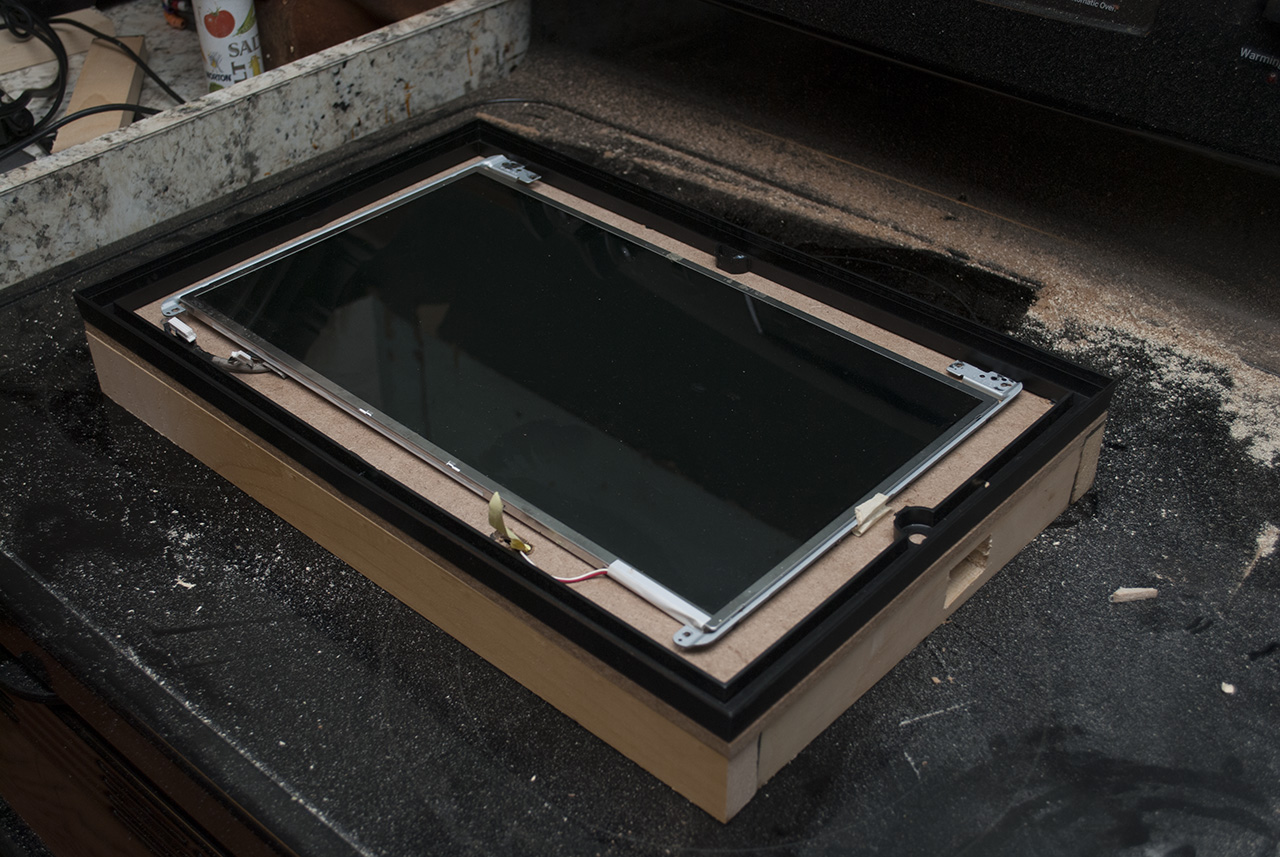

    So far I am in this $20. Glass pops in the front. Will cut the original black cardboard down to be a bezel. Needs some paint. Tomorrow will put in stands and start screwing the hardware in:

    Funny story. I already had this exact model screen sitting on a shelf. I liked its mounts better but now I also know I have a backup screen.

    manny8083 and Irishian88J like this.
  2. manny8083

    manny8083 Admin Admin

    Age:
    24
    687
    347
    Nov 27, 2014
    Male
    Accountant
    Monsey, NY
    United States United States
    That's awesome, cool way to recycle an old laptop.

  3. RainMotorsports

    RainMotorsports Active Member Head Admin

    Age:
    32
    8,169
    1,802
    Mar 6, 2011
    Male
    In The Machine
    United States United States
    Thanks. I've been fairly fortunate recently plus the generosity of people like you. I now have too many working computers. I got that work station laptop. The free laptop I got from my father and fixed got passed down to Liz. My other ASUS is now in the living room for the kid. I salvaged the Compaq that was there for parts. That left me with still having 2 more laptops.

  4. RainMotorsports

    RainMotorsports Active Member Head Admin

    Age:
    32
    8,169
    1,802
    Mar 6, 2011
    Male
    In The Machine
    United States United States
    Almost done tonight. This is going to end up a rushed 3 day build.

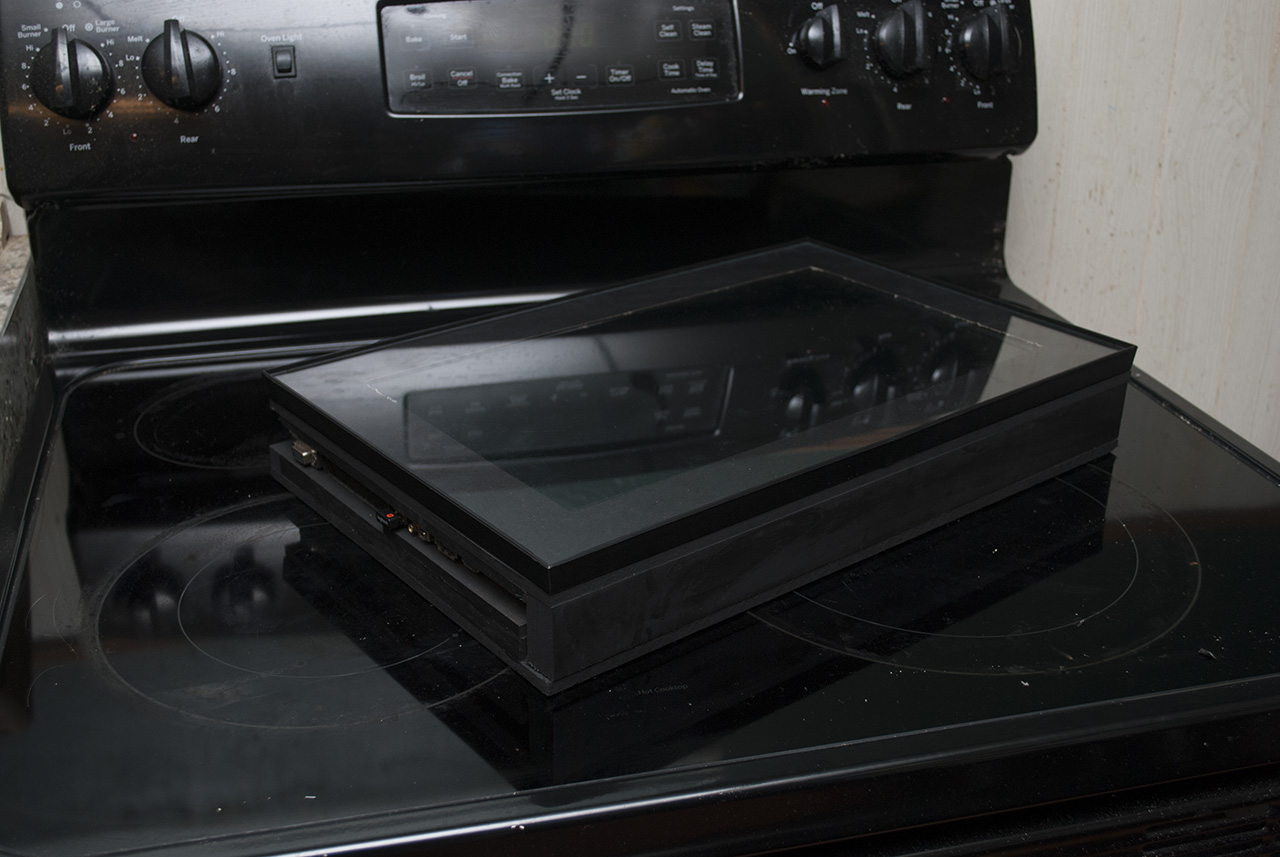

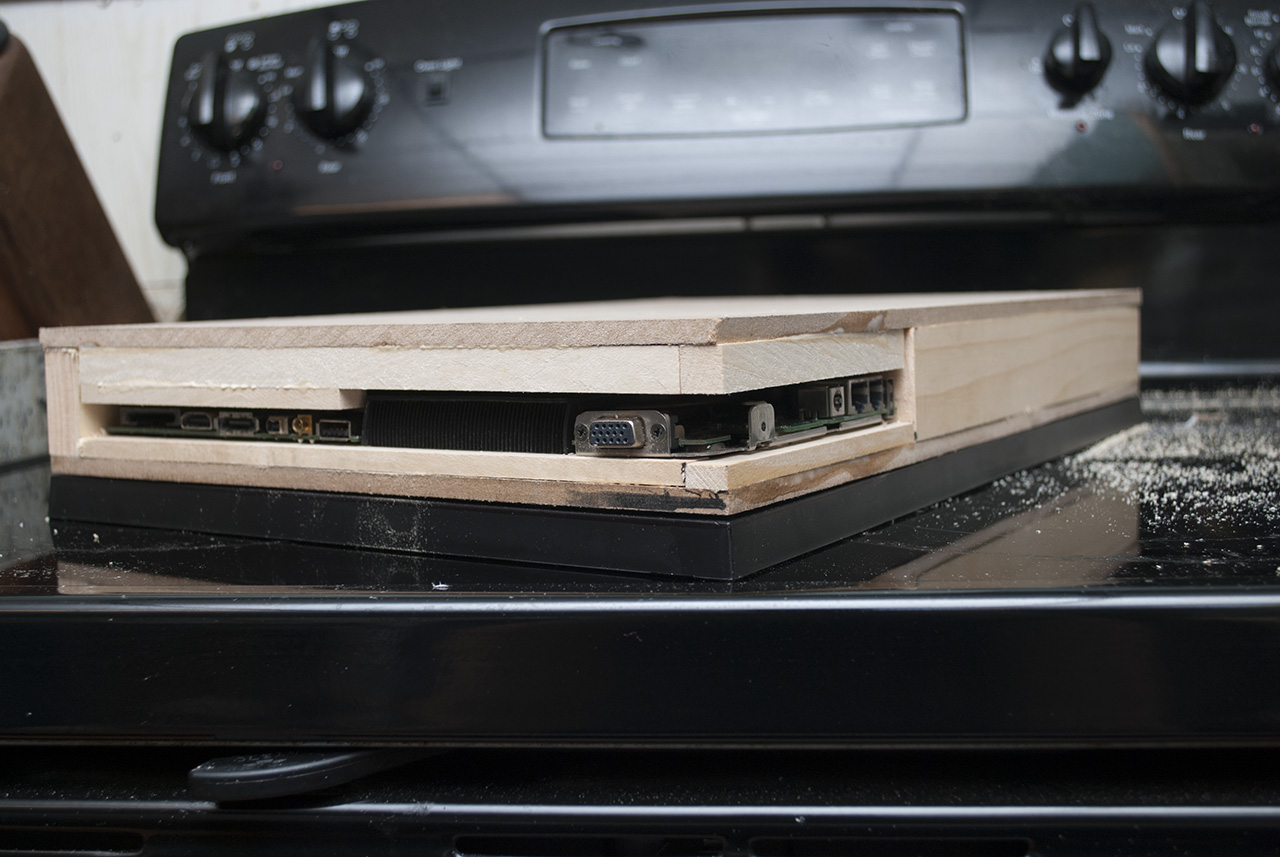

    Test fitting the lid you can clearly see where a piece of wood got crooked while gluing. Most of my rush issues are going out with the sanding block but that wont be one of them:

    With the right tools and a little bit of time I could fill that area in between the VGA and the ethernet. But I am not going to bother for now.

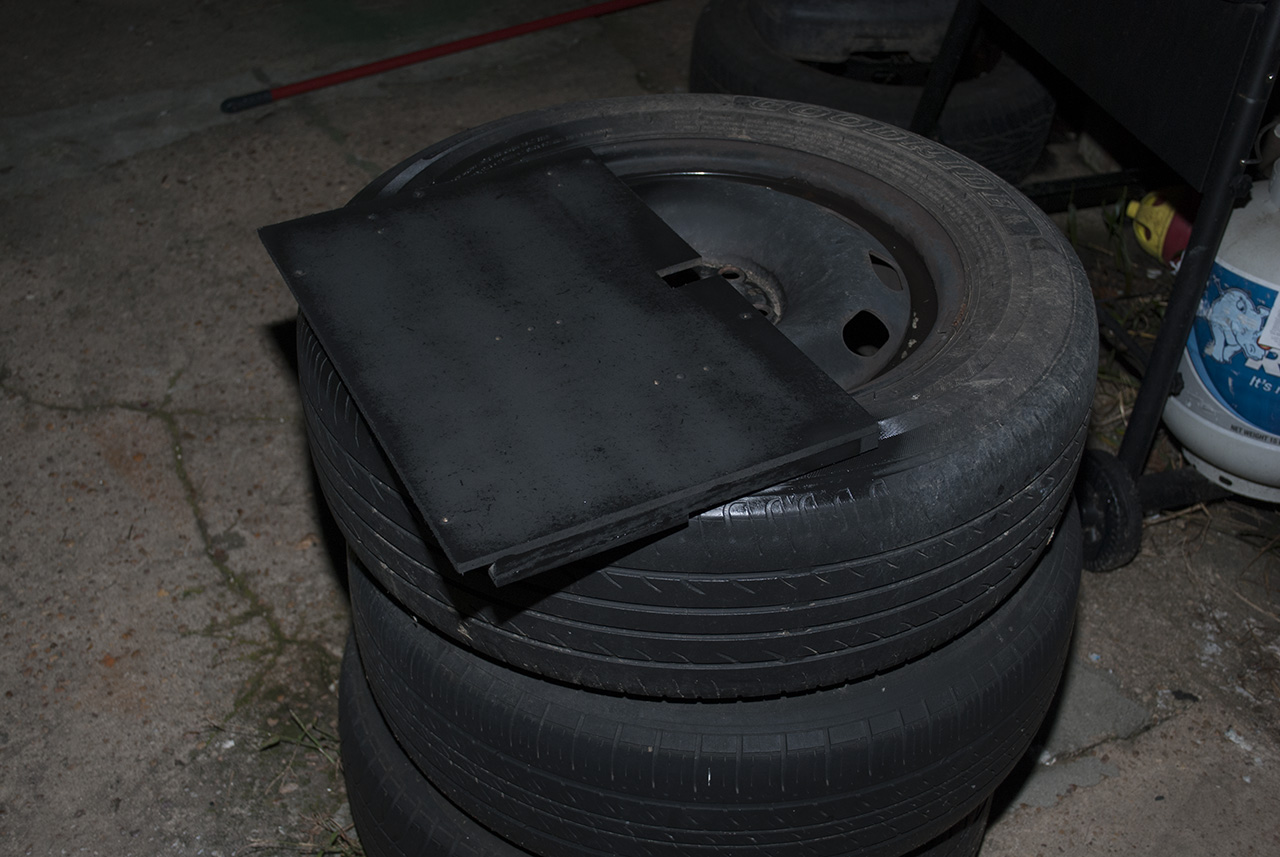

    Throw some paint on it:

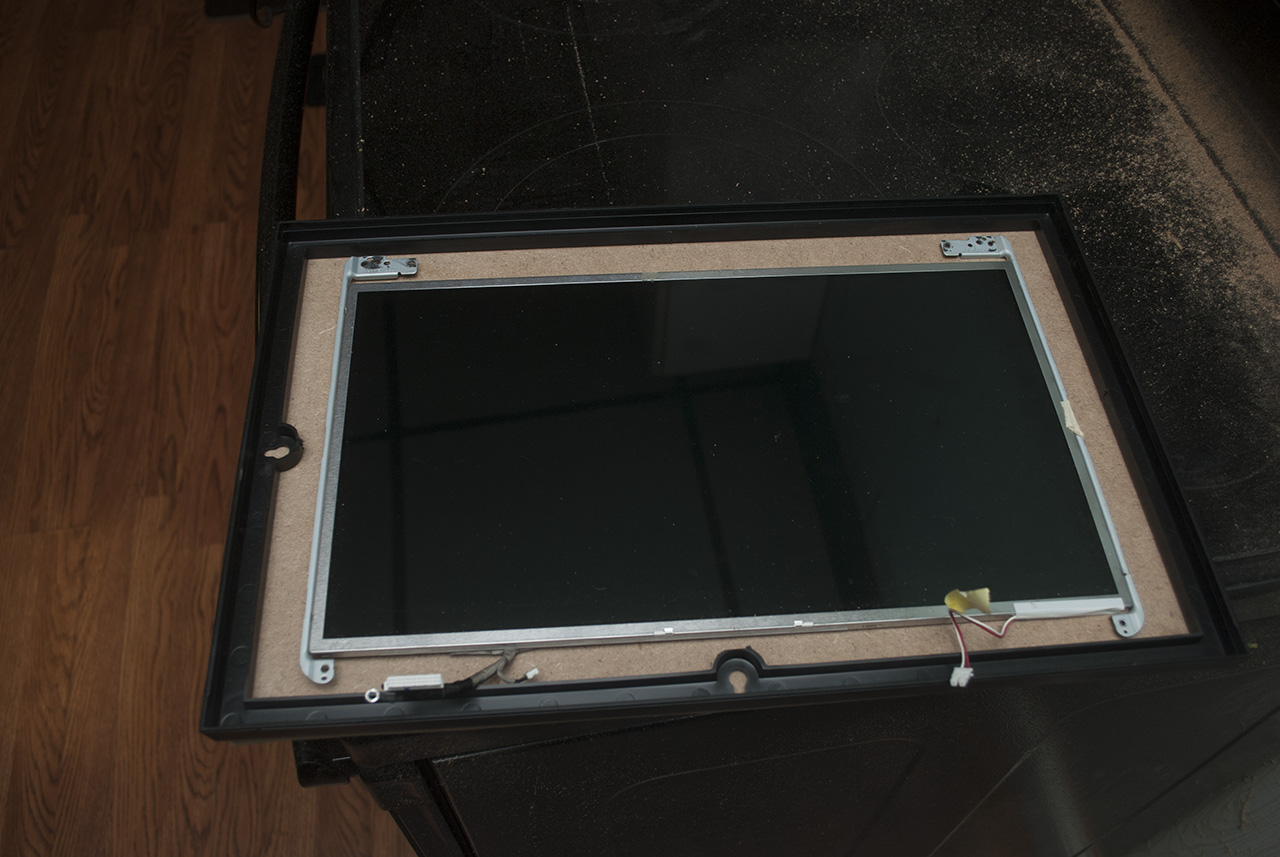

    Mount the screen:

    So for the visible area we still need to cut a bezel out of the originally supplied cardboard. I have included the camera because its actually part of the inverter harness. But I am not running it for now because I broke a wire in the harness and it will be a bitch to repair.

    Need to mount the board, power switch, do thermal paste and put the cooler back in and test it.

    Soulzz likes this.
  5. ShiningN

    ShiningN Admin Admin

    481
    378
    Jul 30, 2013
    Male
    Law Enforcement (Police)
    Georgia
    United States United States
    Looking good!

  6. RainMotorsports

    RainMotorsports Active Member Head Admin

    Age:
    32
    8,169
    1,802
    Mar 6, 2011
    Male
    In The Machine
    United States United States
    Alright she is almost done and having me regret not taking my time.

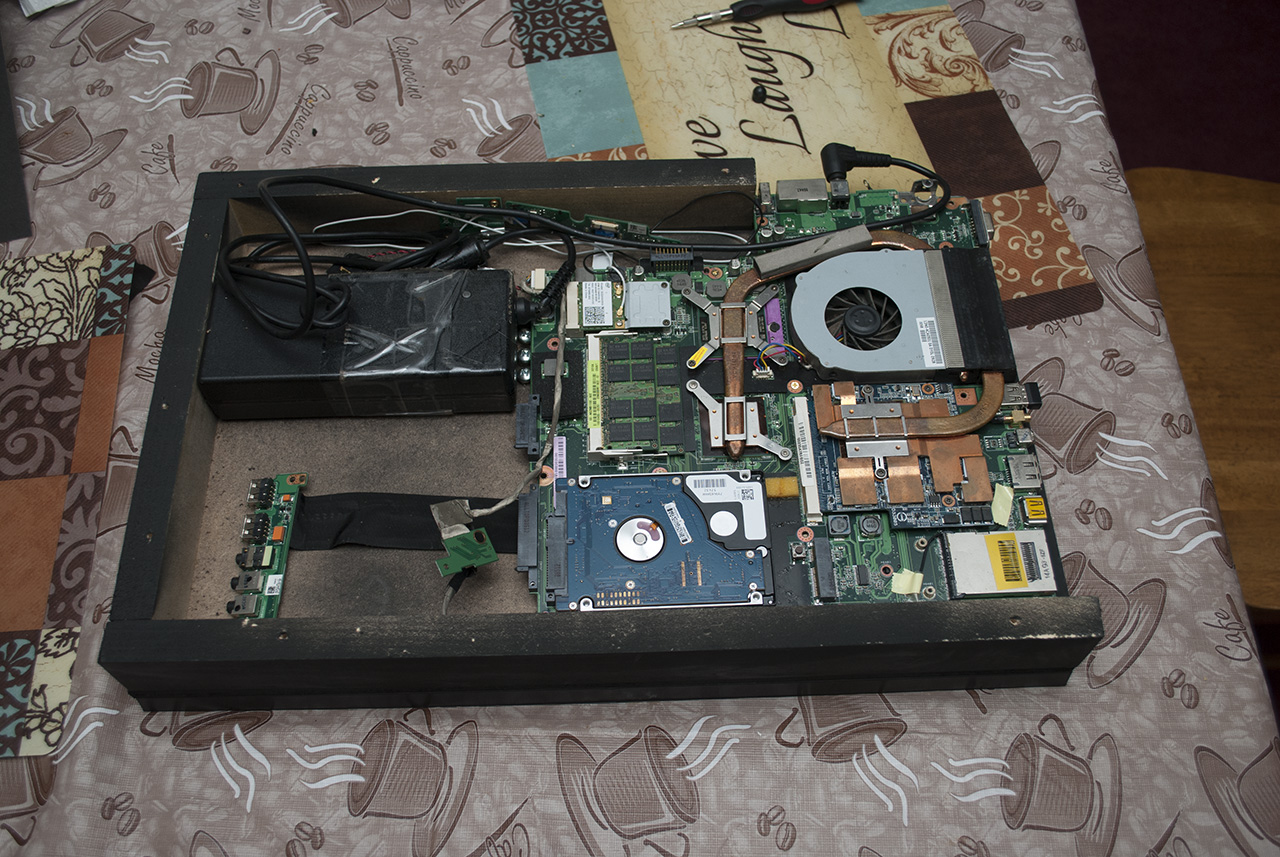

    Guts inserted:

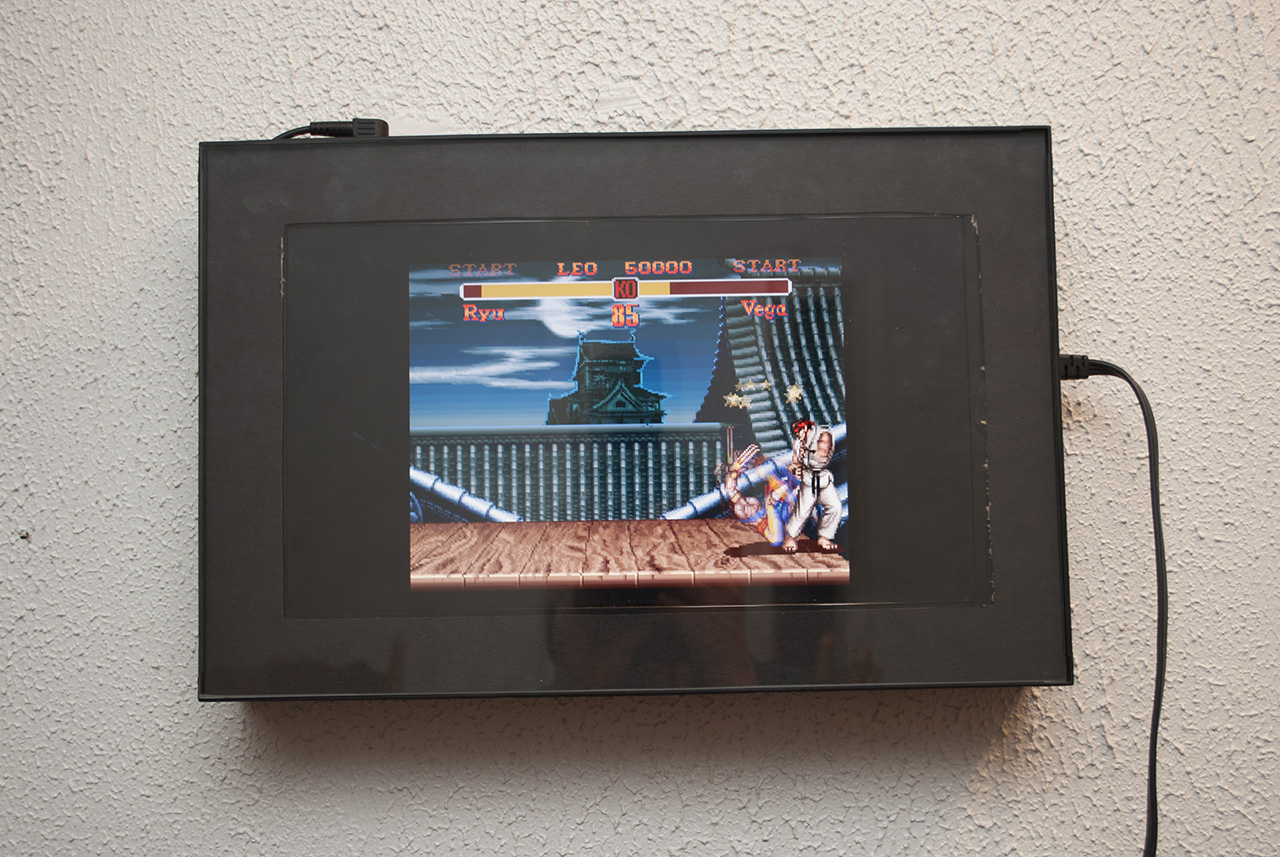

    Wall test:

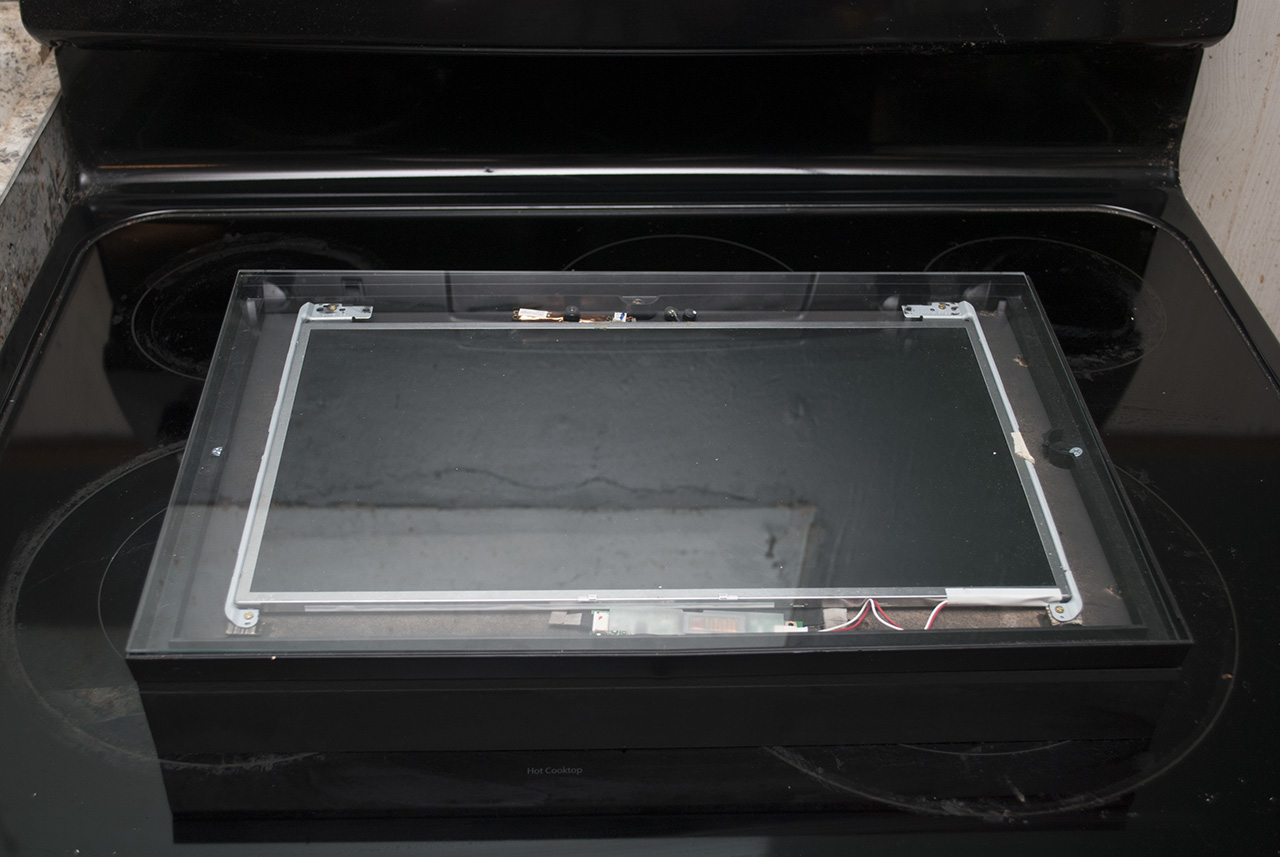

    If I do this again 12x18 will be chosen over 11x17. I will fix the bezel later. Clean the LCD and the glass. There are some things that can't be easily fixed in this build. The power button board is really close to where the hanger is and I have to find a way to protect it. It honestly couldn't go anywhere else and was to complicated to solder a couple of leads and relocate. Really wish the power cord could have come out somewhere else, etc.
