Anyone here have AutoCAD 2018 (or 17, 16, 15, 14)?

RainMotorsports

Active Member
Head Admin
Registered User
Joined
Mar 6, 2011
Messages
8,445
Likes
1,968
Age
33
I kind of got past my current dilemma but I still figured I would ask.

Herman Miller CAD Pack works on 2014 through 2018 so a trial of 2019 seems to do me nothing lol. Most files can be exported to DWG which I can import into Sketchup Pro. But some configurable items apparently have to be inserted directly into AutoCAD.

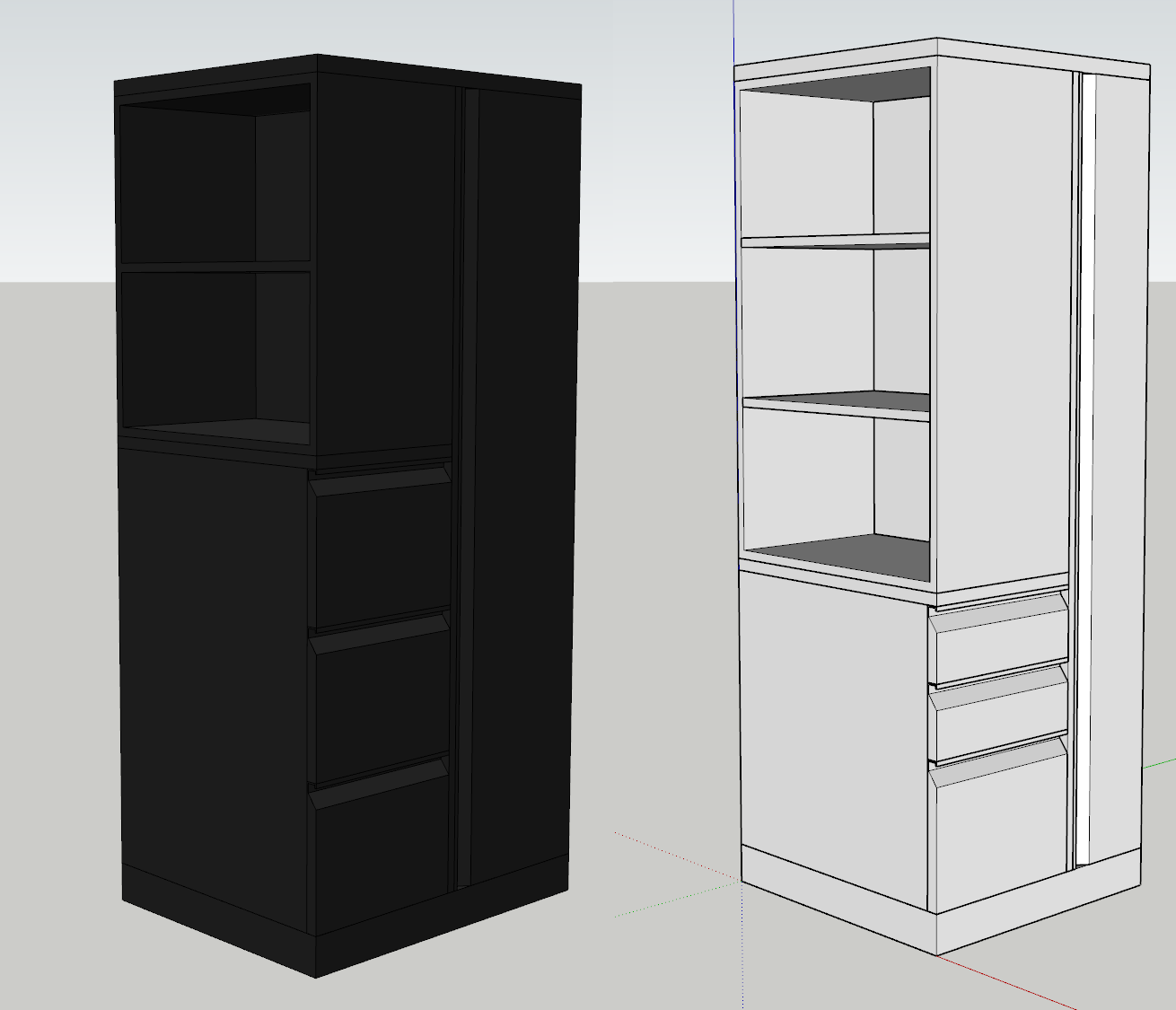

I needed a 24 inch Meridian Tower with open shelving in Box Box File config. Luckily someone had uploaded a 30 inch triple file which I modified:

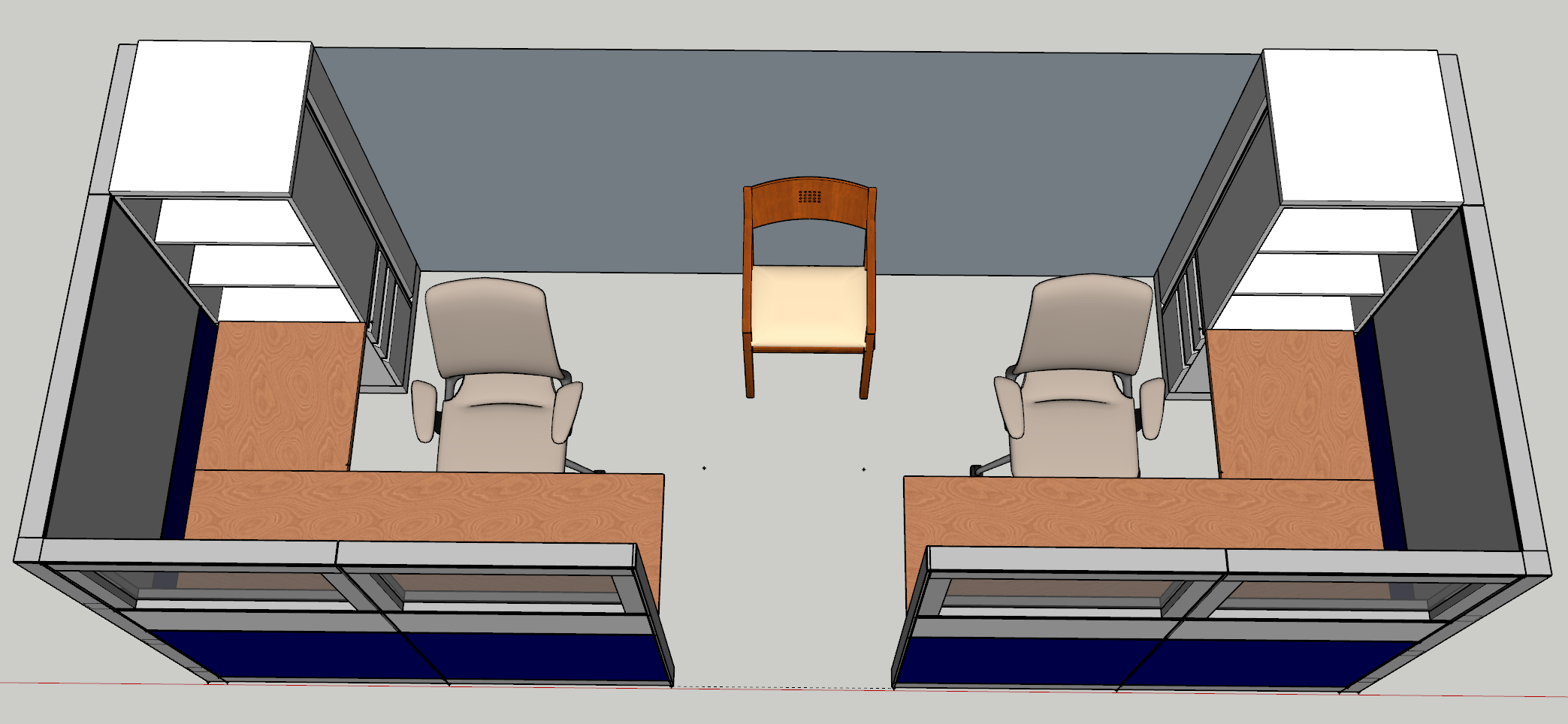

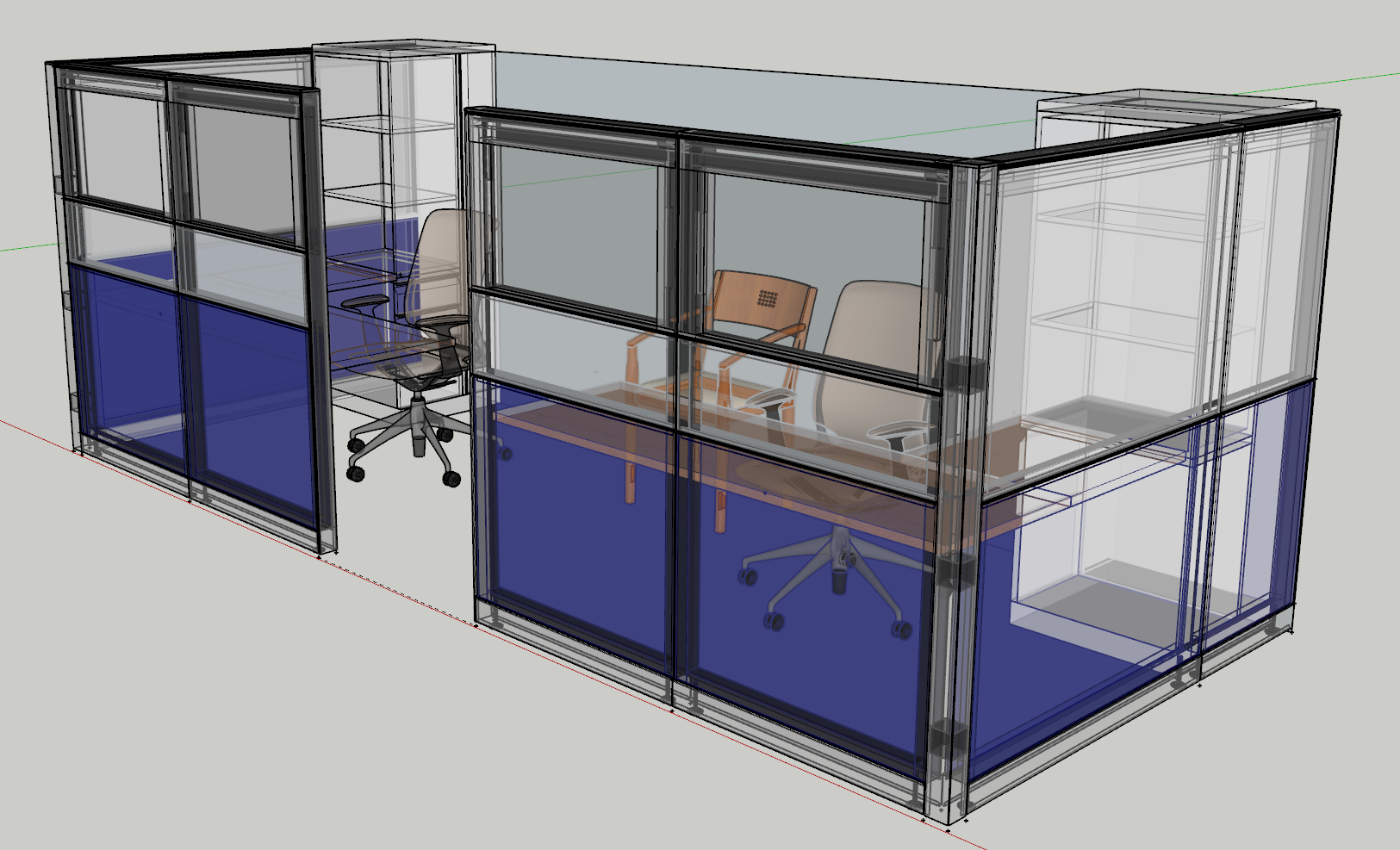

My clients client want's to build a double cube with a single entrance and a chair in between. I lost my measurements of the space until I go back tomorrow but the existing cubes are 6x8 (6x16 in total) and they want to put a desk ahead of it so I have to make the build as small as possible. I came out to 6x15.5. If they would let the storage go I could do something different.




So yeah if any of you poor bastards has a compatible version and a little time I might need a few files exported in the future.


2Tartu

Admin
Admin
Registered User
Joined
Jun 21, 2011
Messages
4,479
Likes
980
Fusion 360 any help to you? (you could get it yourself, too... only $40/mo for businesses, free for education.)


RainMotorsports

Active Member
Head Admin
Registered User
Joined
Mar 6, 2011
Messages
8,445
Likes
1,968
Age
33
Fusion 360 any help to you? (you could get it yourself, too... only $40/mo for businesses, free for education.)
Nah. Installed it last night. CAD Pack doesn't pick it up and it's the same as using SketchUp Pro I have no file to import because it refuses the generate the file. I went the usual route last night as soon as I let up a virtual machine I'll see how well that works out. Long term is not a big deal because I'm exporting is many files as I can from all of the systems that I build. That's a lot of models but off the top of my head I think I've only built 4 Herman Miller systems so far.
